74LVC74A

Dual D-type flip-flop

74LVC74A Features

* 5 V tolerant inputs for interlacing with 5 V logic

* Wide supply voltage range from 1.2 V to 3.6 V

* CMOS low power consumption

* Direct interface with TTL levels

* Complies with JEDEC standard:

* JESD8-7A (1.65 V to 1.95 V)

* JESD8-5A (2.3 V

74LVC74A General Description

The 74LVC74A is a dual edge triggered D-type flip-flop with individual data (nD) inputs, clock (nCP) inputs, set (nSD) and (nRD) inputs, and complementary nQ and nQ outputs. The set and reset are asynchronous active LOW inputs and operate independently of the clock input. Information on the data inp.

74LVC74A Datasheet (263.69 KB)

Preview of 74LVC74A PDF

Datasheet Details

Part number:

74LVC74A

Manufacturer:

nexperia ↗

File Size:

263.69 KB

Description:

Dual d-type flip-flop.
74LVC74A Dual D-type flip-flop with set and reset; positive-edge trigger Rev. 11

* 22 February 2024 Product data sheet 1. General descript.

📁 Related Datasheet

74LVC74A Dual D-type flip-flop (NXP)

74LVC74A-Q100 Dual D-type flip-flop (nexperia)

74LVC74AD Dual D-type flip-flop (nexperia)

74LVC00A LOW VOLTAGE CMOS QUAD 2-INPUT NAND GATE (STMicroelectronics)

74LVC00A QUADRUPLE 2-INPUT NAND GATES (Diodes)

74LVC00A Low-Voltage CMOS Quad 2-Input NAND Gate (ON Semiconductor)

74LVC00A Quad 2-input NAND gate (nexperia)

74LVC00A-Q100 Quad 2-input NAND gate (nexperia)

74LVC00AD Quad 2-input NAND gate (nexperia)

74LVC02 Quad 2-input NOR gate (Philips)

TAGS

74LVC74A Dual D-type flip-flop nexperia

Image Gallery

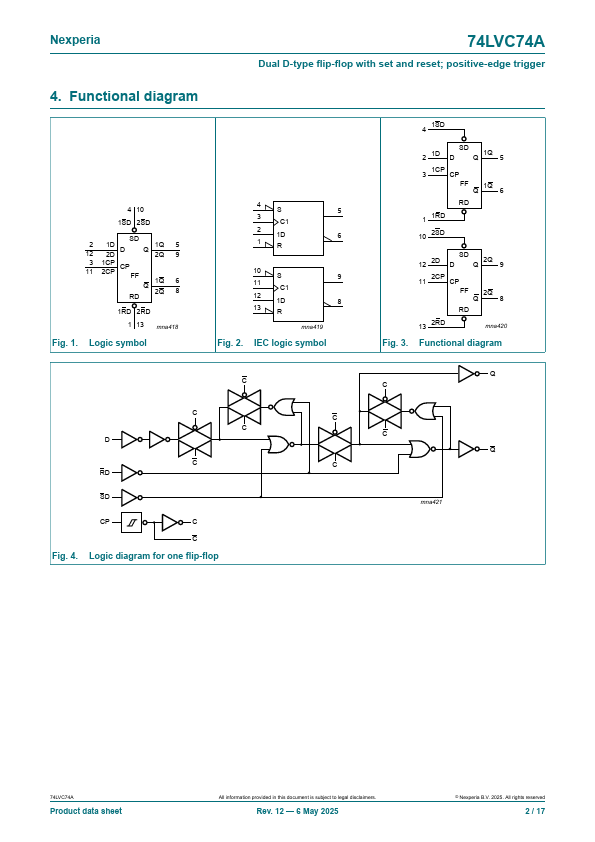

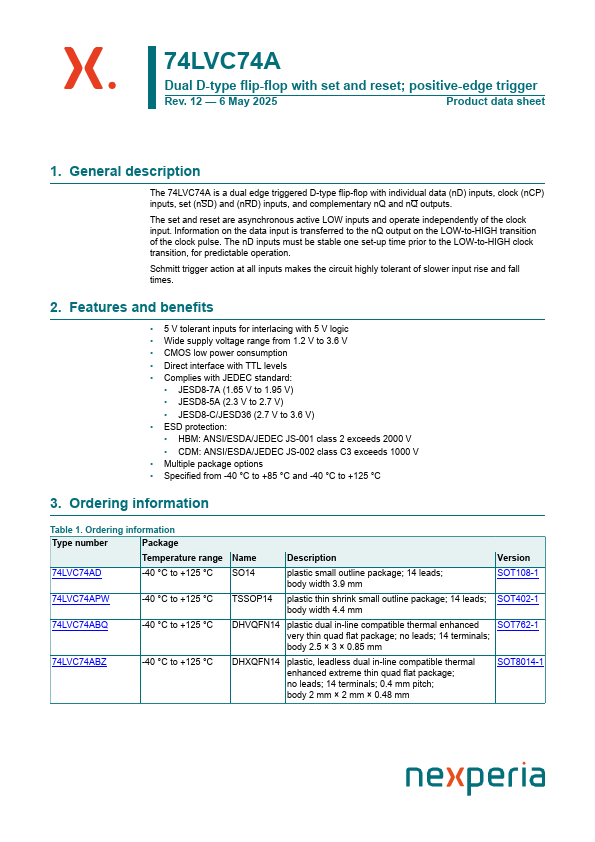

74LVC74A Datasheet Preview Page 2 74LVC74A Datasheet Preview Page 3
