BC54-16PA-Q - 45V 1A NPN medium power transistors

This page provides the datasheet information for the BC54-16PA-Q, a member of the BC54PA-Q 45V 1A NPN medium power transistors family.

Datasheet Summary

Description

NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High collector current capability IC and ICM.
  • Three current gain selections.
  • High power dissipation capability.
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

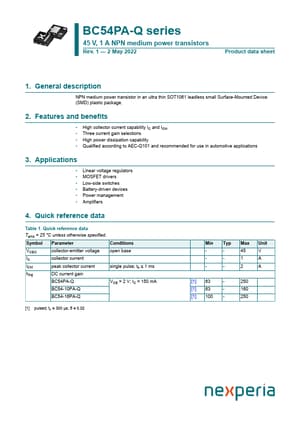

Datasheet preview – BC54-16PA-Q

Datasheet Details

Part number BC54-16PA-Q
Manufacturer nexperia
File Size 229.89 KB
Description 45V 1A NPN medium power transistors
Datasheet download datasheet BC54-16PA-Q Datasheet

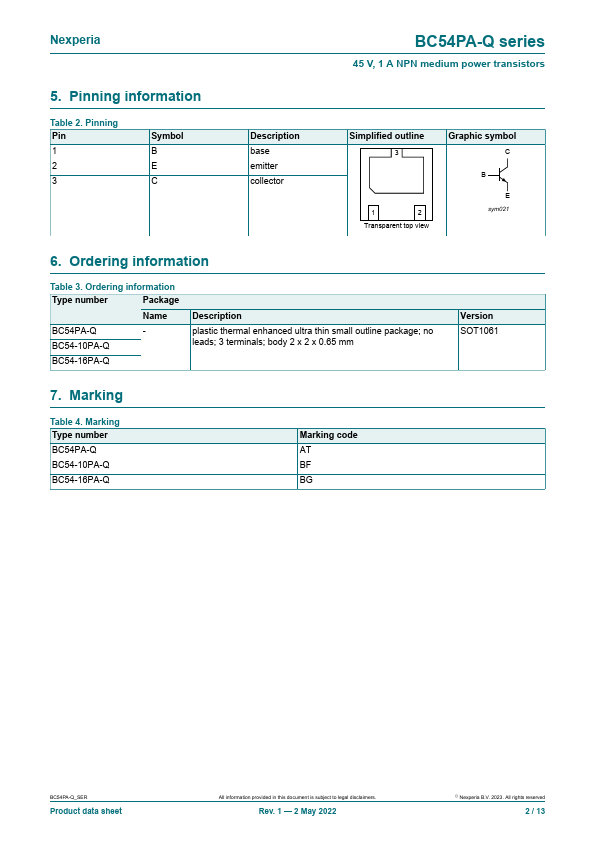

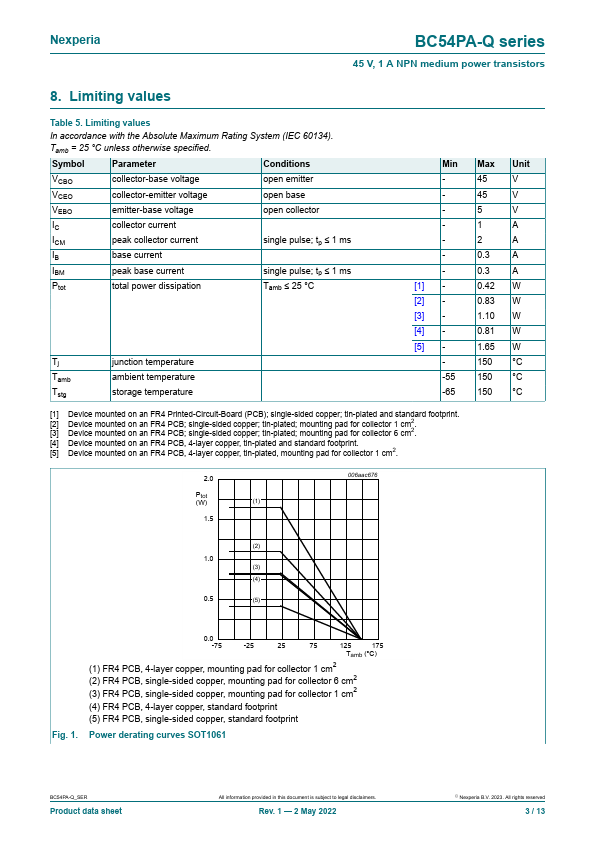

Additional preview pages of the BC54-16PA-Q datasheet.

📁 Similar Datasheet

  • BC546 - Amplifier Transistors (Motorola Inc)
  • BC546 - NPN Transistor (NXP)
  • BC546 - NPN Transistor (Fairchild Semiconductor)
  • BC546 - NPN Transistor (Kingtronics)
  • BC546 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
  • BC546 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • BC546 - NPN Transistor (Philips)
  • BC546 - NPN Transistor (RECTRON)
  • BC546 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • BC546 - NPN Transistor (UTC)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

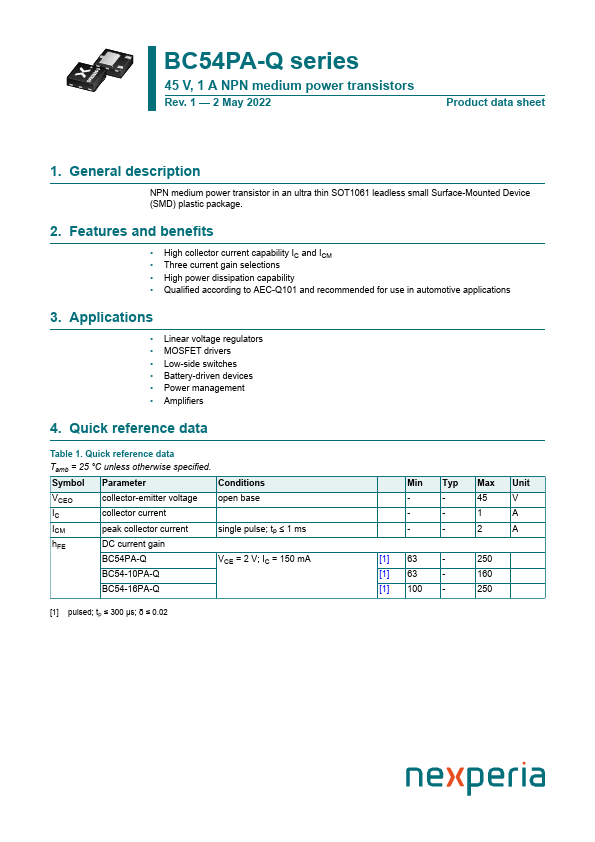

BC54PA-Q series 45 V, 1 A NPN medium power transistors Rev. 1 — 2 May 2022 Product data sheet 1. General description NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High collector current capability IC and ICM • Three current gain selections • High power dissipation capability • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Linear voltage regulators • MOSFET drivers • Low-side switches • Battery-driven devices • Power management • Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
