BC54-10PAS - 1A NPN medium power transistors

This page provides the datasheet information for the BC54-10PAS, a member of the BC54PAS 1A NPN medium power transistors family.

Datasheet Summary

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

2.

Features

  • High collector current capability IC and ICM.
  • Reduced Printed-Circuit Board (PCB) area requirements.
  • Exposed heat sink for excellent thermal and electrical conductivity.
  • Two current gain selections.
  • Leadless very small SMD plastic package with medium power capability.
  • Suitable for Automatic Optical Inspection (AOI) of solder joint 3.

📥 Download Datasheet

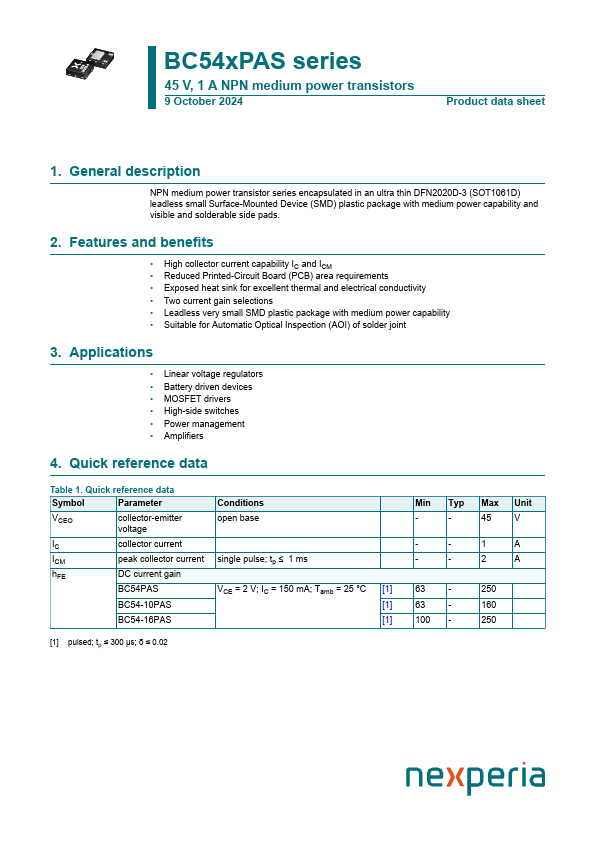

Datasheet preview – BC54-10PAS

Datasheet Details

Part number BC54-10PAS
Manufacturer nexperia
File Size 250.27 KB
Description 1A NPN medium power transistors
Datasheet download datasheet BC54-10PAS Datasheet

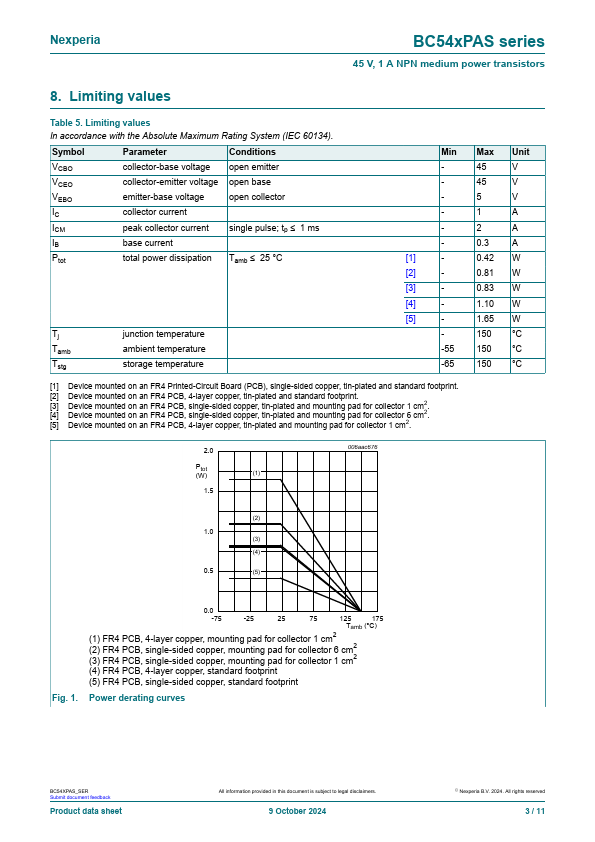

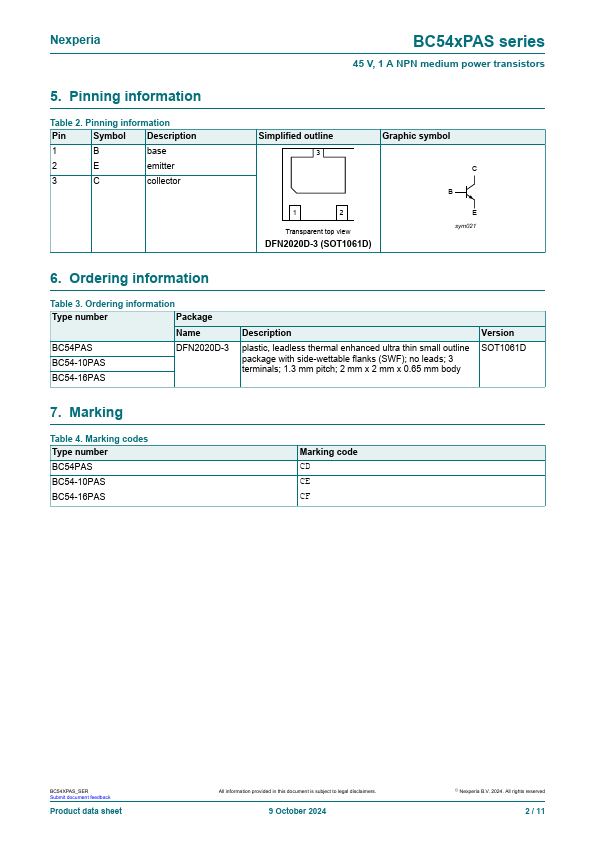

Additional preview pages of the BC54-10PAS datasheet.

📁 Similar Datasheet

  • BC546 - Amplifier Transistors (Motorola Inc)
  • BC546 - NPN Transistor (NXP)
  • BC546 - NPN Transistor (Fairchild Semiconductor)
  • BC546 - NPN Transistor (Kingtronics)
  • BC546 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
  • BC546 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • BC546 - NPN Transistor (Philips)
  • BC546 - NPN Transistor (RECTRON)
  • BC546 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • BC546 - NPN Transistor (UTC)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
BC54xPAS series 45 V, 1 A NPN medium power transistors 9 October 2024 Product data sheet 1. General description NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads. 2. Features and benefits • High collector current capability IC and ICM • Reduced Printed-Circuit Board (PCB) area requirements • Exposed heat sink for excellent thermal and electrical conductivity • Two current gain selections • Leadless very small SMD plastic package with medium power capability • Suitable for Automatic Optical Inspection (AOI) of solder joint 3.
