BST52-Q NPN Darlington transistor

BST52-Q Description

BST52-Q NPN Darlington transistor 30 September 2025 Product data sheet 1.General .
NPN Darlington transistor in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.

BST52-Q Features

* Integrated diode and resistor

BST52-Q Applications

* 3. Applications
* Industrial switching applications such as:
* Print hammer
* Solenoid
* Relay and lamp driving 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain C

📥 Download Datasheet

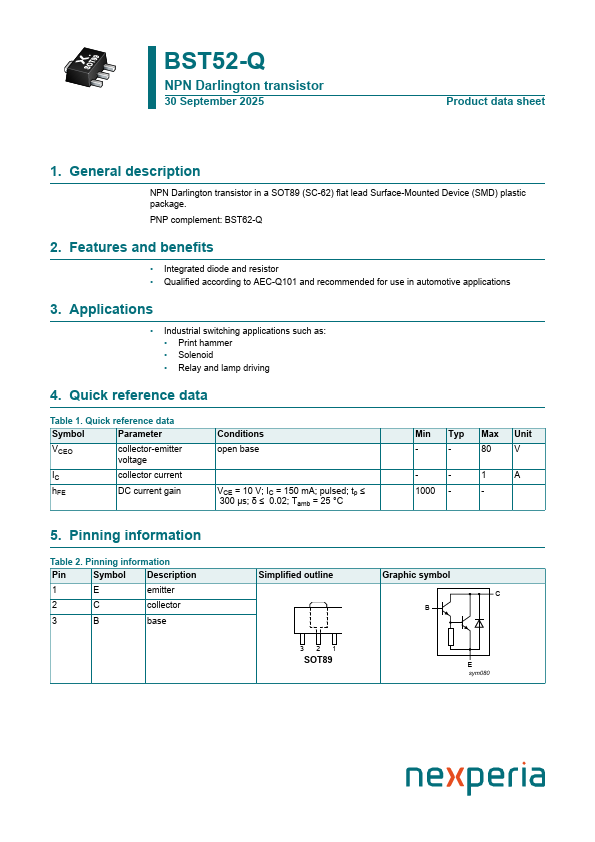

Preview of BST52-Q PDF

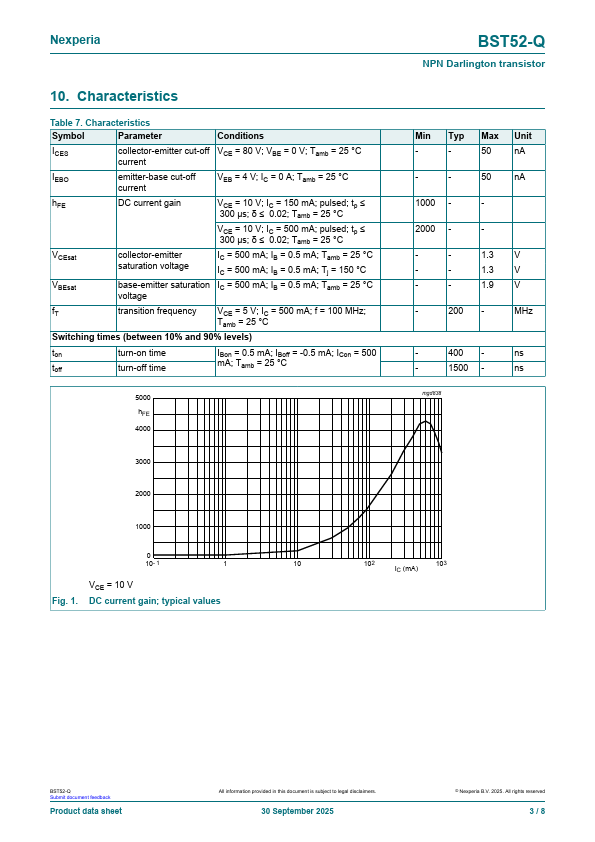

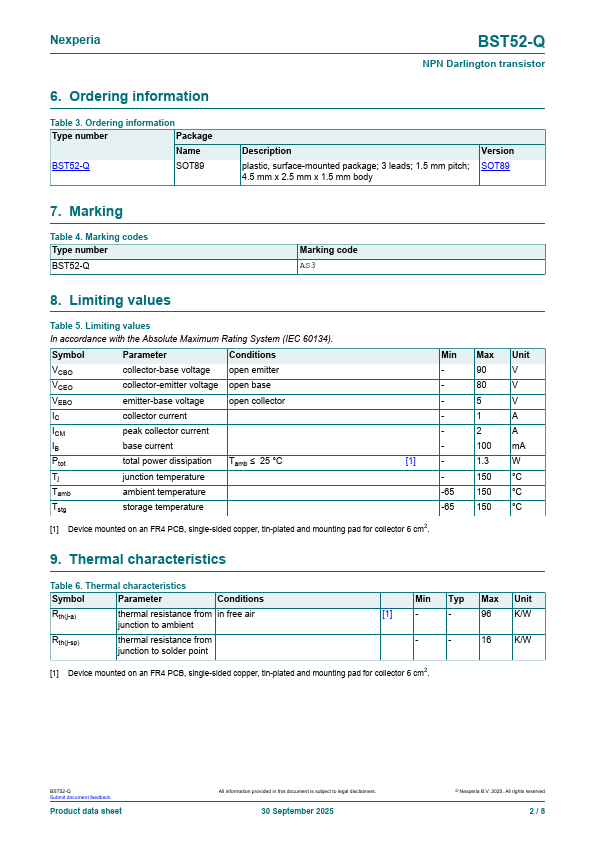

datasheet Preview Page 2 datasheet Preview Page 3
