BUK7Q4R9-40H Standard level N-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

BUK7Q4R9-40H Standard level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) 7 May 2025 Product data sheet 1.General .
Standard level N-Channel MOSFET in a small MLPAK33-WF (SOT8002-3D) package using Trench 9 technology.

📥 Download Datasheet

Preview of BUK7Q4R9-40H PDF

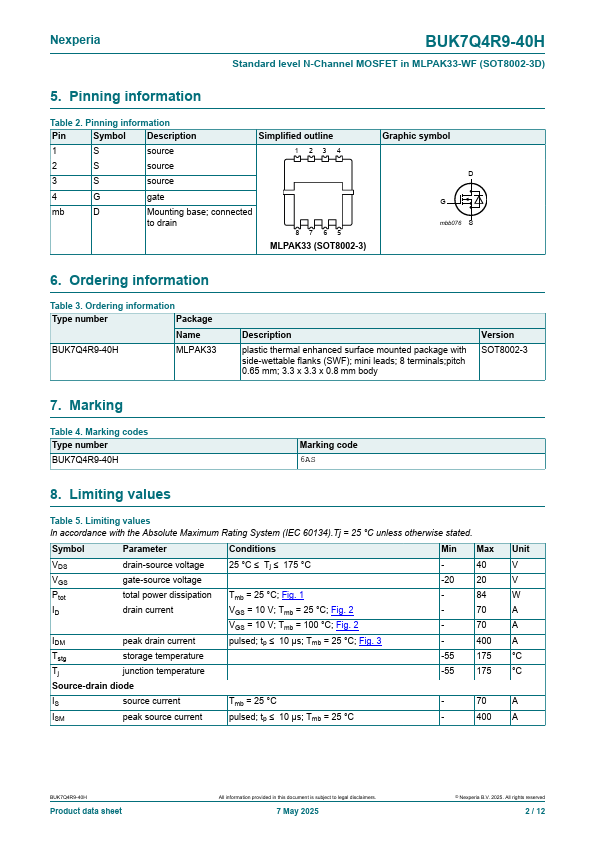

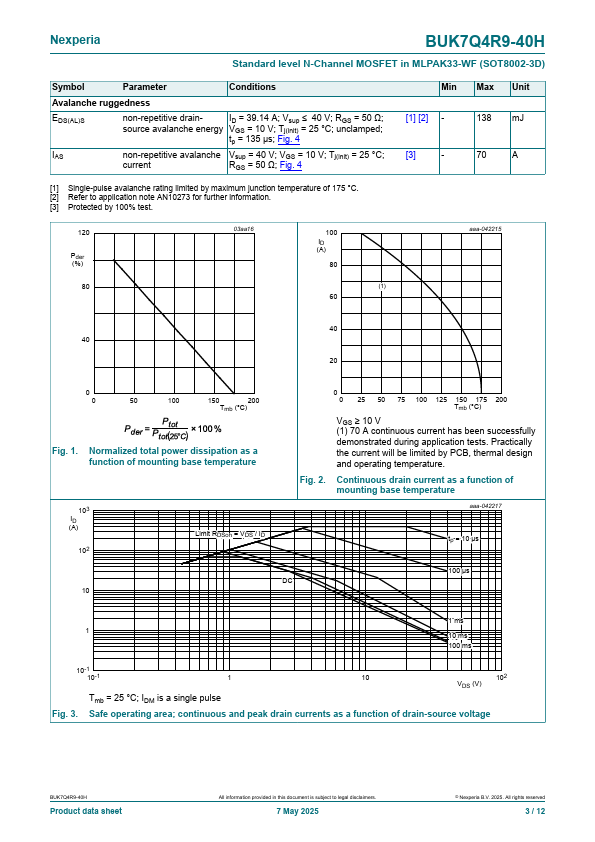

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Trench 9 technology
* Small footprint (3 x 3 mm) for compact design
* Qualified to AEC-Q101 at 175 °C

Applications

* Motor drive
* Battery protection
* DC-DC Conversion 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage ID drain current Ptot total power dissipation Static characteristics RDSon drain-source on-state resistance Dyna
