BUK7Q9R5-40H - Standard level N-Channel MOSFET

nexperia

BUK7Q9R5-40H Description

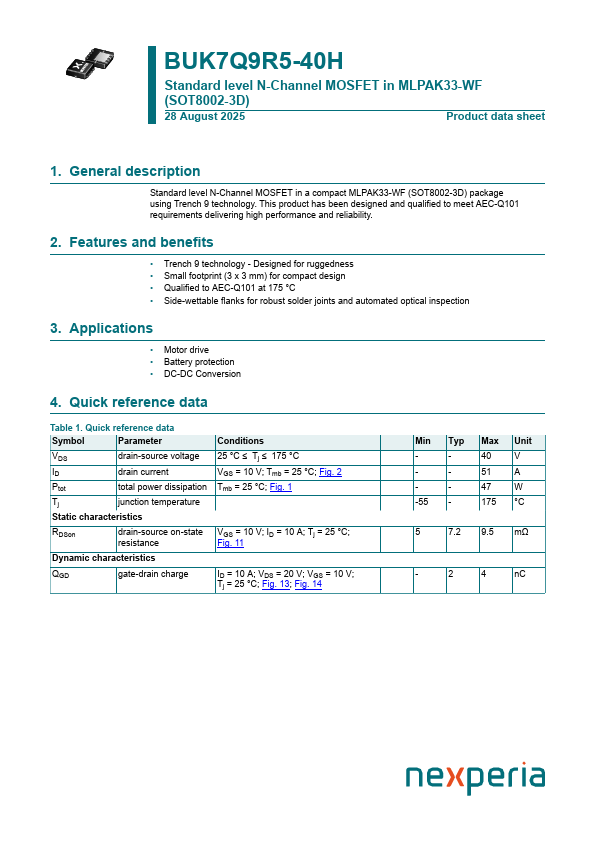

BUK7Q9R5-40H Standard level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) 28 August 2025 Product data sheet 1.General .
Standard level N-Channel MOSFET in a compact MLPAK33-WF (SOT8002-3D) package using Trench 9 technology.

BUK7Q9R5-40H Features

* Trench 9 technology - Designed for ruggedness
* Small footprint (3 x 3 mm) for compact design
* Qualified to AEC-Q101 at 175 °C

BUK7Q9R5-40H Applications

* Motor drive
* Battery protection
* DC-DC Conversion 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage ID drain current Ptot total power dissipation Tj junction temperature Static characteristics RDSon drain-source

📥 Download Datasheet

BUK7Q9R5-40H Datasheet Preview — Preview of BUK7Q9R5-40H PDF

Datasheet Details

Part number: BUK7Q9R5-40H
Manufacturer: nexperia ↗
File Size: 328.76 KB
Datasheet: BUK7Q9R5-40H-nexperia.pdf
Description: Standard level N-Channel MOSFET
