BUK7S1R5-40H - N-channel MOSFET

nexperia

📥 Download Datasheet

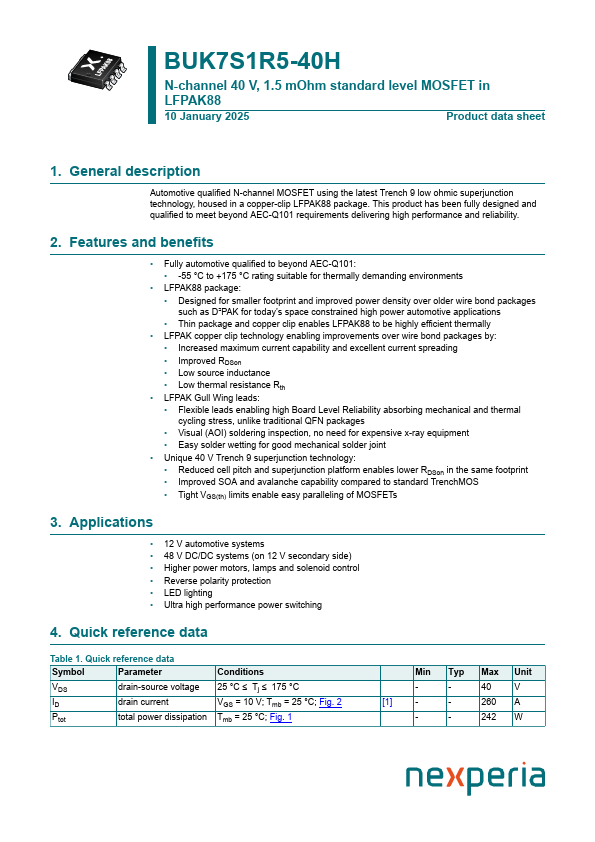

BUK7S1R5-40H Datasheet Preview — Preview of BUK7S1R5-40H PDF

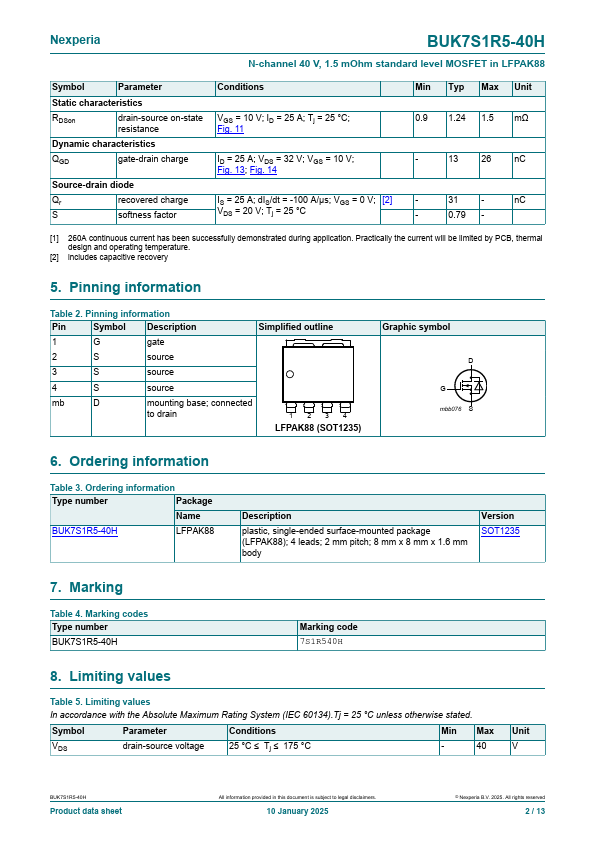

datasheet Preview Page 2

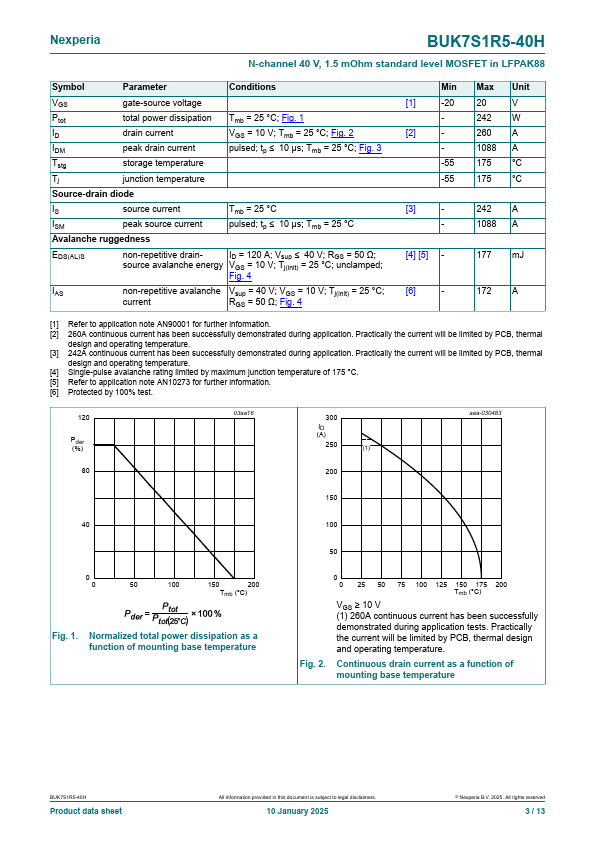

datasheet Preview Page 3

Datasheet Details

Part number	BUK7S1R5-40H
Manufacturer	nexperia ↗
File Size	322.60 KB
Description	N-channel MOSFET
Datasheet	BUK7S1R5-40H-nexperia.pdf

BUK7S1R5-40H Product details

Description

Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a copper-clip LFPAK88 package.

Features

Fully automotive qualified to beyond AEC-Q101:.
-55 °C to +175 °C rating suitable for thermally demanding environments.
LFPAK88 package:.
Designed for smaller footprint and improved power density over older wire bond packages such as D²PAK for today’s space constrained high power automotive.
