BUK7S1R2-40H N-channel 40V MOSFET

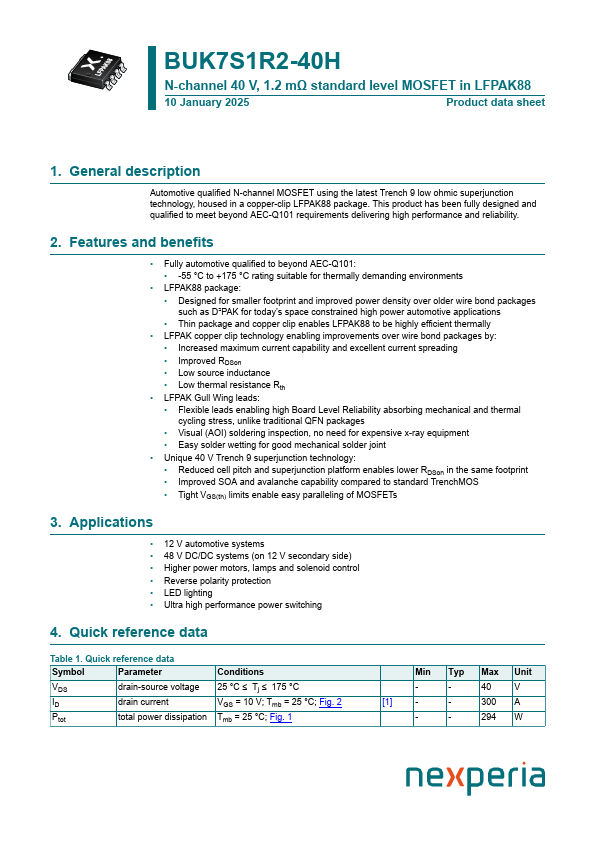

📥 Download Datasheet Datasheet Preview Page 1

Description

BUK7S1R2-40H N-channel 40 V, 1.2 mΩ standard level MOSFET in LFPAK88 10 January 2025 Product data sheet 1.General .
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a copper-clip LFPAK88 package.

📥 Download Datasheet

Preview of BUK7S1R2-40H PDF

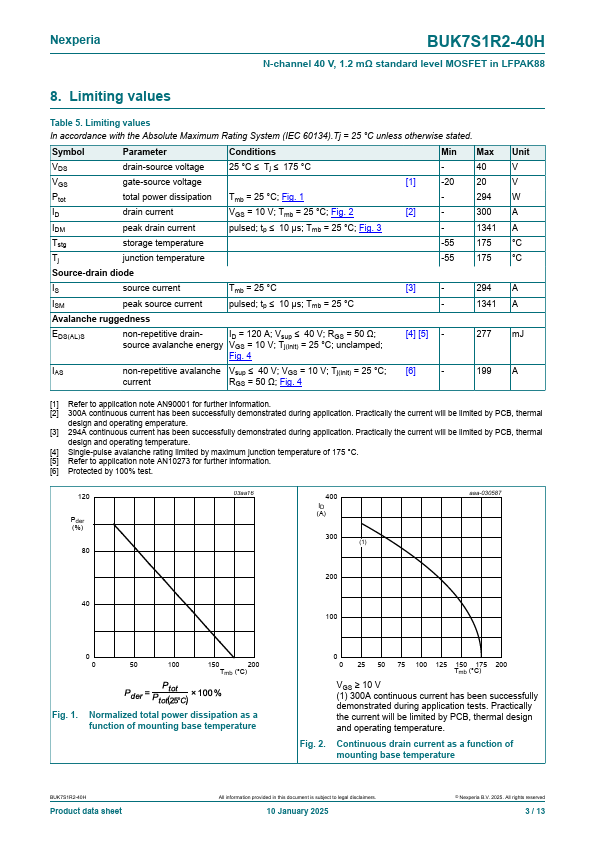

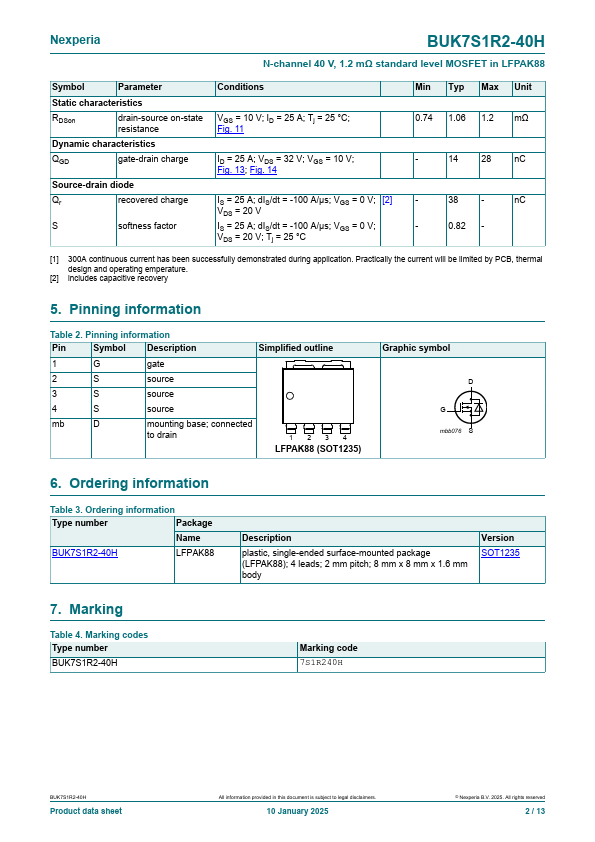

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Fully automotive qualified to beyond AEC-Q101:
* -55 °C to +175 °C rating suitable for thermally demanding environments
* LFPAK88 package:
* Designed for smaller footprint and improved power density over older wire bond packages such as D²PAK for today’s space const

Applications

* Thin package and copper clip enables LFPAK88 to be highly efficient thermally
* LFPAK copper clip technology enabling improvements over wire bond packages by:
* Increased maximum current capability and excellent current spreading
* Improved RDSon
* Low sourc
