HEF4043B-Q100 Quad R/S latch

The HEF4043B-Q100 is a quad R/S latch with 3-state outputs and common output enable input (OE). Each latch has set (nS), and reset (nR) inputs and a 3-state output (nQ). When OE is LOW, the latch outputs are in the high impedance OFF-state. OE does not affect the state of the latch. Inputs include c.

HEF4043B-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 3)

* Specified from -40 °C to +85 °C

* Wide supply voltage range from 3.0 to 15.0 V

* CMOS low power dissipation

* High noise immunity

* Fully static operation

* 5 V, 10 V, a

HEF4043B-Q100 Datasheet (208.45 KB)

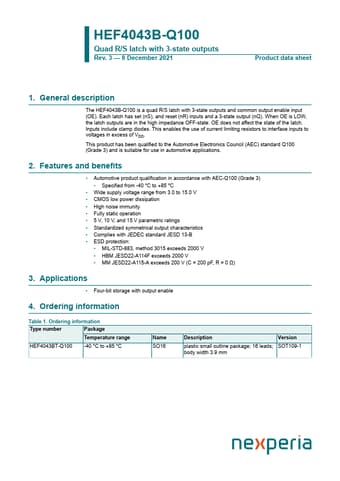

Preview of HEF4043B-Q100 PDF
HEF4043B-Q100 Datasheet Preview Page 2 HEF4043B-Q100 Datasheet Preview Page 3

Datasheet Details

Part number:

HEF4043B-Q100

Manufacturer:

nexperia ↗

File Size:

208.45 KB

Description:

Quad r/s latch.
