HEF4047B-Q100

Monostable/astable multivibrator

HEF4047B-Q100 Features

* 2.1 General

* Automotive product qualification in accordance with AEC-Q100 (Grade 3)

* Specified from -40 °C to +85 °C

* Monostable (one-shot) or astable (free-running) operation

* True and complemented buffered outputs

* Only one external resistor and capacit

HEF4047B-Q100 General Description

The HEF4047B-Q100 is a retriggerable astable multivibrator that can be configured as either a positive-edge or negative-edge triggered monostable multivibrator. The output pulse width is programmed by selection of external components (Rt and Ct). Inputs include clamp diodes. This enables the use of .

HEF4047B-Q100 Datasheet (272.33 KB)

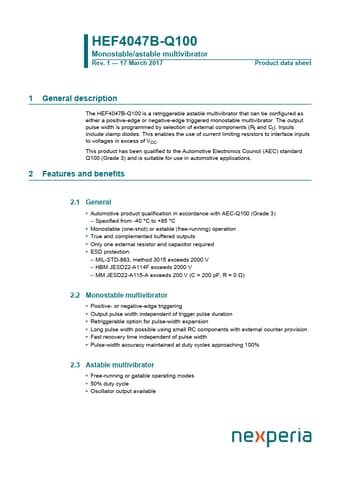

Preview of HEF4047B-Q100 PDF

Datasheet Details

Part number:

HEF4047B-Q100

Manufacturer:

nexperia ↗

File Size:

272.33 KB

Description:

Monostable/astable multivibrator.
