HEF4043BT, HEF4043B Datasheet - nexperia

HEF4043B-nexperia.pdf

This datasheet PDF includes multiple part numbers: HEF4043BT, HEF4043B. Please refer to the document for exact specifications by model.

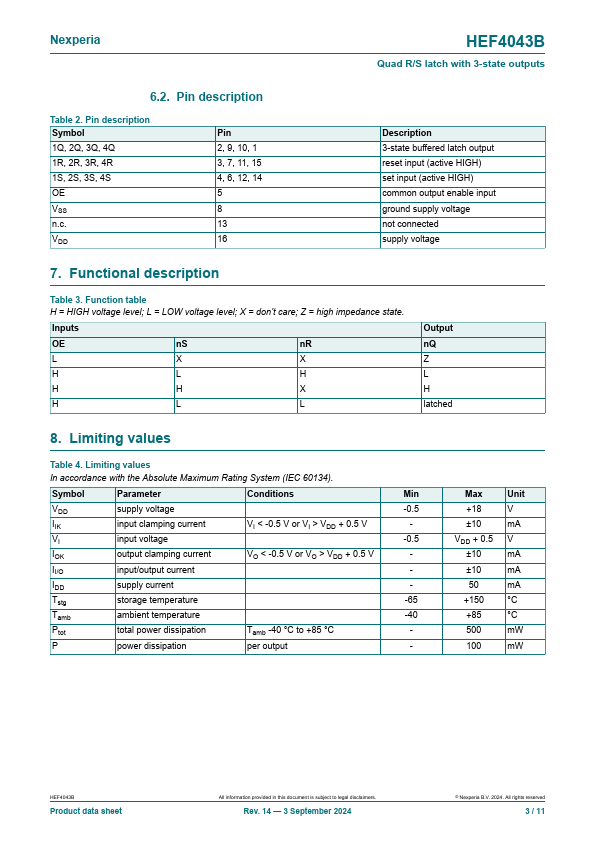

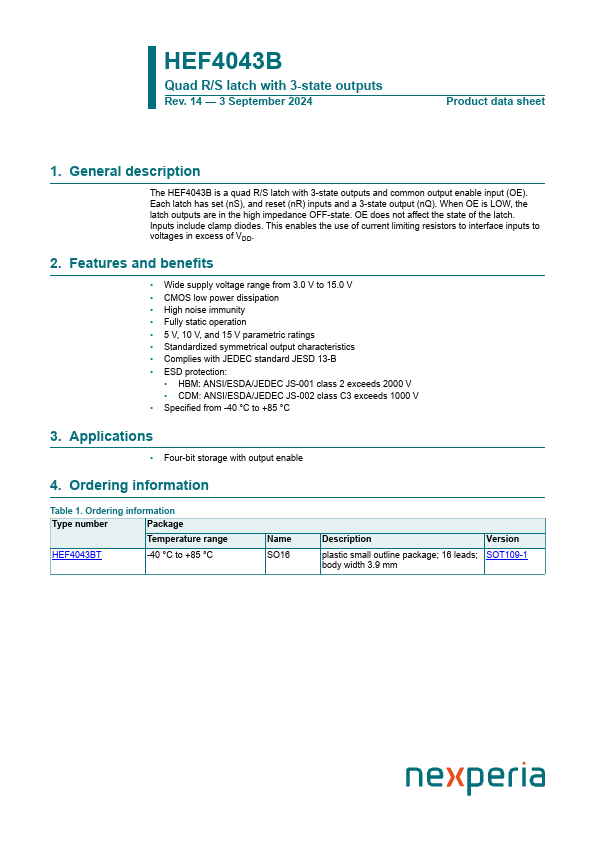

HEF4043BT Datasheet Preview Page 2 HEF4043BT Datasheet Preview Page 3

Datasheet Details

Part number:

HEF4043BT, HEF4043B

Manufacturer:

nexperia ↗

File Size:

212.24 KB

Description:

Quad r/s latch.

Note:

This datasheet PDF includes multiple part numbers: HEF4043BT, HEF4043B.
Please refer to the document for exact specifications by model.

HEF4043BT, HEF4043B, Quad R/S latch

The HEF4043B is a quad R/S latch with 3-state outputs and common output enable input (OE).

Each latch has set (nS), and reset (nR) inputs and a 3-state output (nQ).

When OE is LOW, the latch outputs are in the high impedance OFF-state.

OE does not affect the state of the latch.

Inputs include clamp

HEF4043BT Features

* Wide supply voltage range from 3.0 V to 15.0 V

* CMOS low power dissipation

* High noise immunity

* Fully static operation

* 5 V, 10 V, and 15 V parametric ratings

* Standardized symmetrical output characteristics

* Complies with JEDEC standa
