HEF4050B-Q100 - Hex non-inverting buffers

Product Overview

nexperia

📥 Download Datasheet

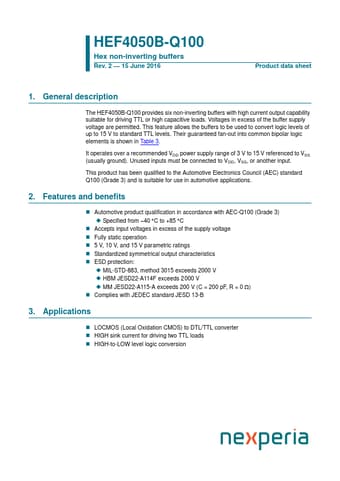

HEF4050B-Q100 Hex non-inverting buffers by nexperia - Datasheet Preview — Datasheet preview – HEF4050B-Q100

Datasheet Details

Part number	HEF4050B-Q100
Manufacturer	nexperia
File Size	754.12 KB
Description	Hex non-inverting buffers
Datasheet	HEF4050B-Q100 Datasheet
Additional preview pages of the HEF4050B-Q100 datasheet.

Product details

Description

The HEF4050B-Q100 provides six non-inverting buffers with high current output capability suitable for driving TTL or high capacitive loads.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 3).
Specified from 40 C to +85 C.
Accepts input voltages in excess of the supply voltage.
Fully static operation.
5 V, 10 V, and 15 V parametric ratings.
Standardized symmetrical output characteristics.
ESD protection:.
MIL-STD-883, method 3015 exceeds 2000 V.
HBM JESD22-A114F exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 ).
Complies with JEDEC stand.
