HEF4051B-Q100 - 8-channel analog multiplexer/demultiplexer

Product Overview

nexperia

Datasheet Details

Part number	HEF4051B-Q100
Manufacturer	nexperia
File Size	775.78 KB
Description	8-channel analog multiplexer/demultiplexer
Datasheet	HEF4051B-Q100 Datasheet

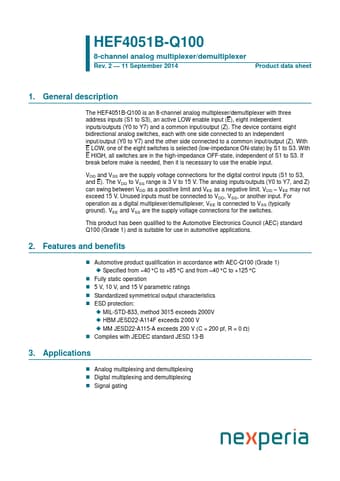

Additional preview pages of the HEF4051B-Q100 datasheet.

Product details

Description

The HEF4051B-Q100 is an 8-channel analog multiplexer/demultiplexer with three address inputs (S1 to S3), an active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from 40 C to +85 C and from 40 C to +125 C.
Fully static operation.
5 V, 10 V, and 15 V parametric ratings.
Standardized symmetrical output characteristics.
ESD protection:.
MIL-STD-833, method 3015 exceeds 2000V.
HBM JESD22-A114F exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V (C = 200 pf, R = 0 ).
Complies with JEDEC standard JESD 13-B 3.
