HEF4050BT - Hex non-inverting buffers

Product Overview

nexperia

📥 Download Datasheet

HEF4050BT Hex non-inverting buffers by nexperia - Datasheet Preview — Datasheet preview – HEF4050BT

Datasheet Details

Part number	HEF4050BT
Manufacturer	nexperia
File Size	194.71 KB
Description	Hex non-inverting buffers
Datasheet	HEF4050BT Datasheet
Note	This datasheet PDF includes multiple part numbers: HEF4050BT, HEF4050B. Please refer to the document for exact specifications by model.

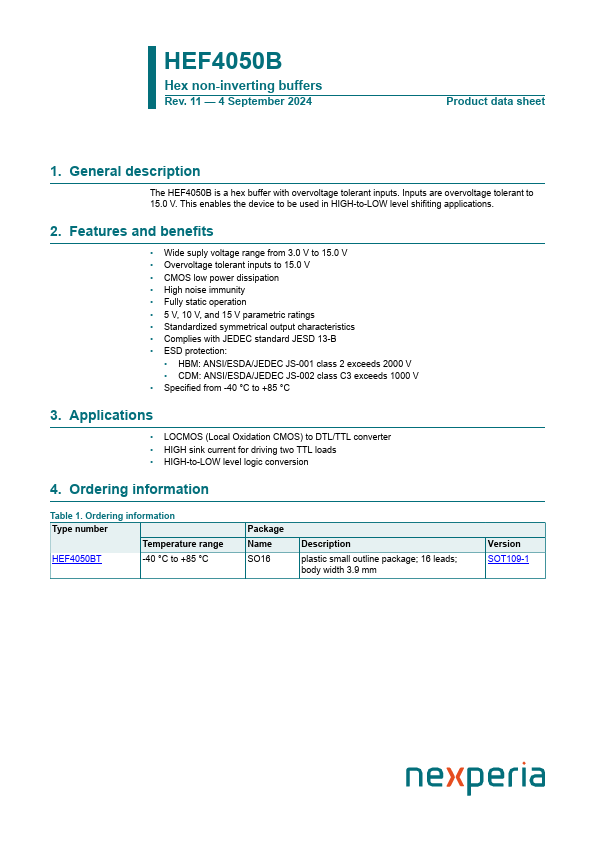

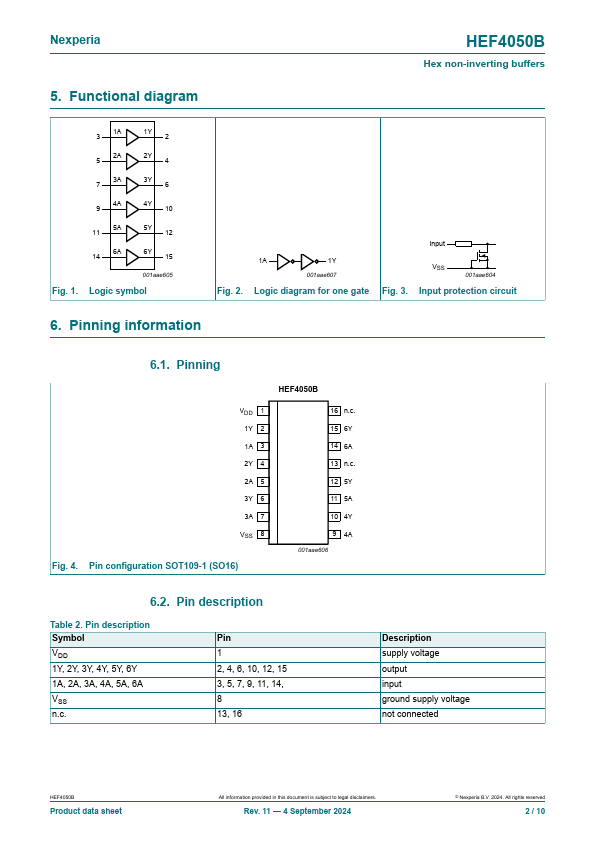

Additional preview pages of the HEF4050BT datasheet.

Product details

Description

The HEF4050B is a hex buffer with overvoltage tolerant inputs.

Features

Wide suply voltage range from 3.0 V to 15.0 V.
Overvoltage tolerant inputs to 15.0 V.
CMOS low power dissipation.
High noise immunity.
Fully static operation.
5 V, 10 V, and 15 V parametric ratings.
Standardized symmetrical output characteristics.
Complies with JEDEC standard JESD 13-B.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceed.
