PDTA113ZT 50V 100mA PNP resistor-equipped transistor

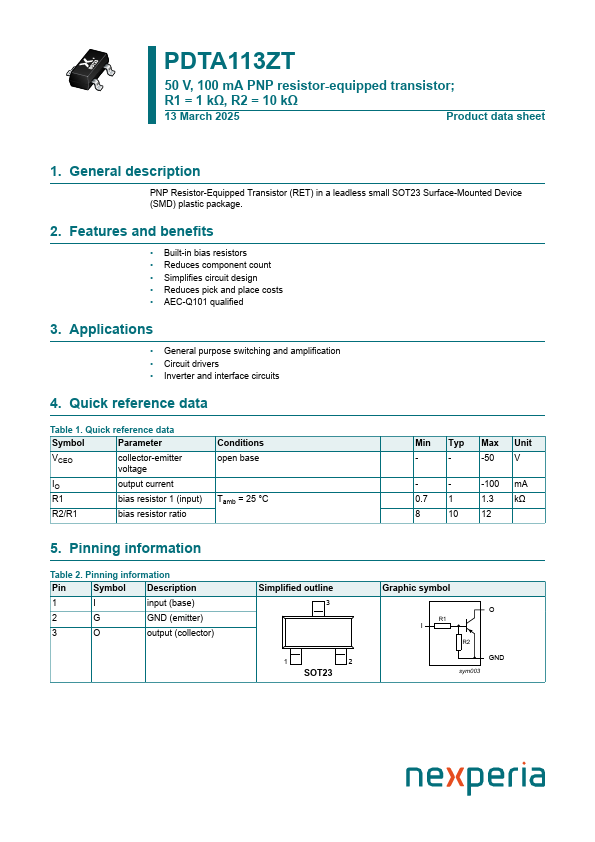

PDTA113ZT 50 V, 100 mA PNP resistor-equipped transistor; R1 = 1 kΩ, R2 = 10 kΩ 13 March 2025 Product data sheet 1.General .
PNP Resistor-Equipped Transistor (RET) in a leadless small SOT23 Surface-Mounted Device (SMD) plastic package. Bui.

PDTA113ZT-nexperia.pdf

PDTA113ZT Datasheet Preview — Preview of PDTA113ZT PDF

Datasheet Details

Part number:

PDTA113ZT

Manufacturer:

nexperia ↗

File Size:

210.00 KB

Description:

50V 100mA PNP resistor-equipped transistor

Features

* Built-in bias resistors
* Reduces component count
* Simplifies circuit design
* Reduces pick and place costs

Applications

* General purpose switching and amplification
* Circuit drivers
* Inverter and interface circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IO output current R1 bias resistor 1 (input) R2/R1 bias resistor
