PDTA143EM, PDTA143E PNP resistor-equipped transistors

PDTA143EM Description

PDTA143E series PNP resistor-equipped transistors; R1 = 4.7 k, R2 = 4.7 k Rev.8 * 8 December 2011 Product data sheet 1.Product profile .
PNP Resistor-Equipped Transistor (RET) family in Surface-Mounted Device (SMD) plastic packages.

PDTA143EM Features

* 100 mA output current capability
* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
* Reduces pick and place costs

PDTA143EM Applications

* Digital applications in automotive and industrial segments
* Control of IC inputs
* Cost-saving alternative for BC847/857 series in digital applications
* Switching loads 1.4 Quick reference data Table 2. Symbol VCEO IO R1 R2/R1 Quick reference data Parameter collector-emitter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PDTA143EM, PDTA143E. Please refer to the document for exact specifications by model.

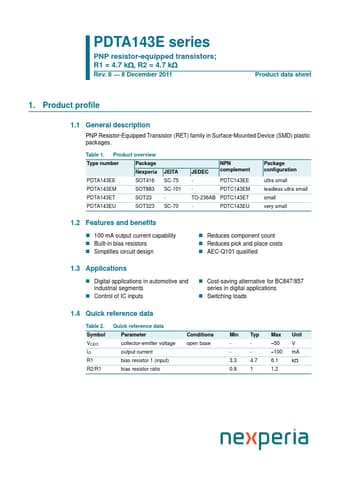

datasheet Preview Page 2 datasheet Preview Page 3
