PDTA143EK Datasheet - NXP

PNP resistor-equipped transistor

PDTA143EK Features

* Built-in bias resistors R1 and R2 (typ. 4.7 kΩ each)

* Simplification of circuit design

* Reduces number of components and board space. APPLICATIONS

* Especially suitable for space reduction in interface and driver circuits.

* Inverter circuit configurations

PDTA143EK General Description

PNP resistor-equipped transistor in a plastic SC-59 package. NPN complement: PDTC143EK. PINNING MGA893 - 1 PDTA143EK 3 3 R1 1 R2 2 1 Top view 2 MAM262 Fig.1 Simplified outline (SC-59) and symbol. MARKING TYPE NUMBER PDTA143EK 2 1 3 MARKING CODE 01 PIN 1 2 3 DESCRIPTION base/input emitter/gr.

PDTA143EK Datasheet (66.82 KB)

PDTA143EK Datasheet Preview — Preview of PDTA143EK PDF

Datasheet Details

Part number:

PDTA143EK

Manufacturer:

NXP ↗

File Size:

66.82 KB

Description:

Pnp resistor-equipped transistor.

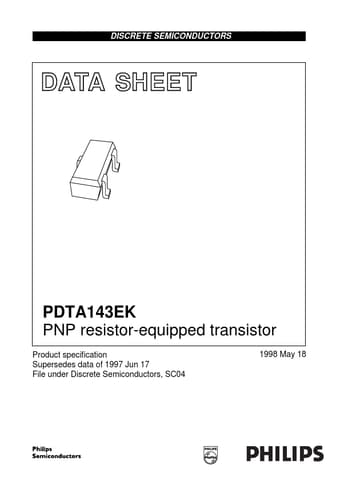

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D114 PDTA143EK PNP resistor-equipped transistor Product speciﬁcation Supersedes data of 1997 Ju.
