PDTA143XM 50V 100mA PNP resistor-equipped transistor

PDTA143XM Description

PDTA143XM 50 V, 100 mA PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 10 kΩ 7 May 2025 Product data sheet 1.General .
PNP Resistor-Equipped Transistor (RET) in an ultra small SOT883 (SC-101) in Surface-Mounted Device (SMD) plastic package.

PDTA143XM Features

* 100 mA output current capability
* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
* Reduces pick and place costs

PDTA143XM Applications

* Digital applications in automotive and industrial segments
* Control of IC inputs
* Cost-saving alternative for BC847/857 series in digital applications
* Switching loads 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emi

📥 Download Datasheet

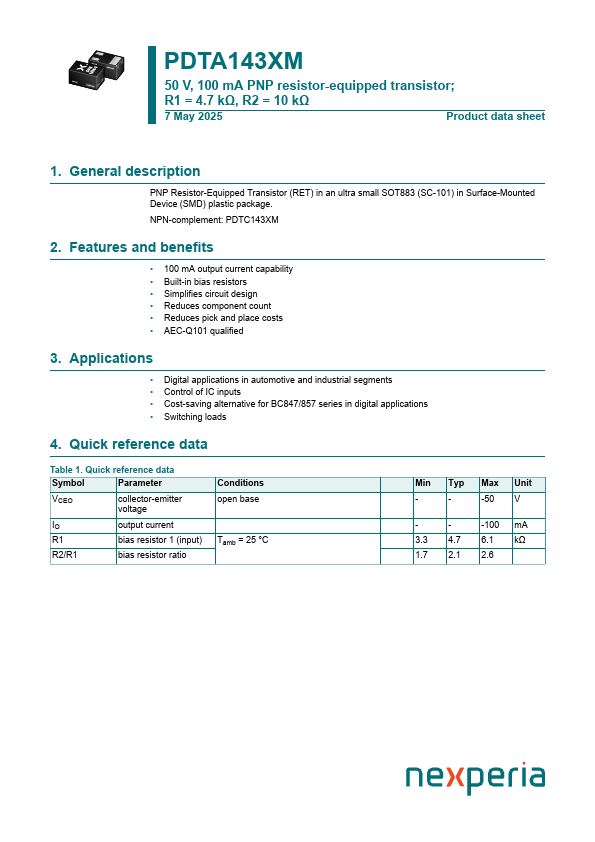

Preview of PDTA143XM PDF

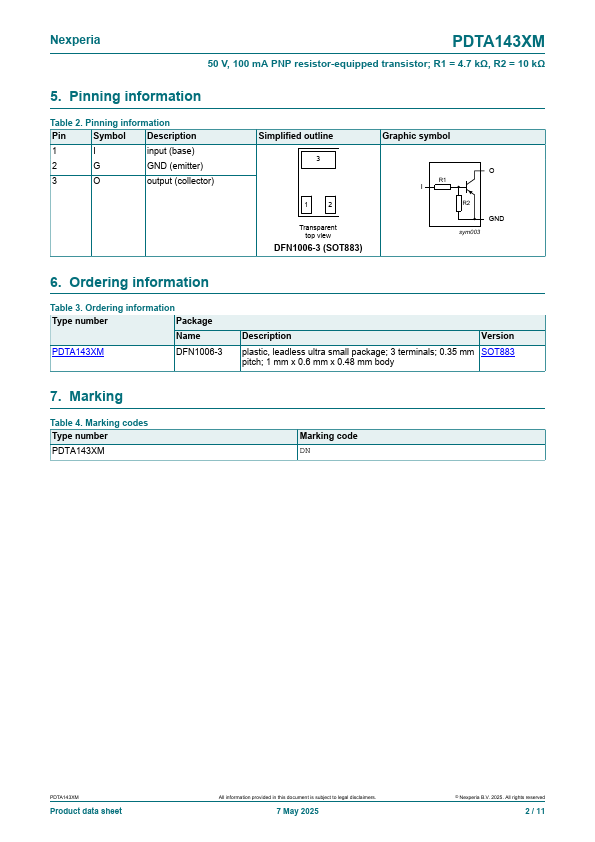

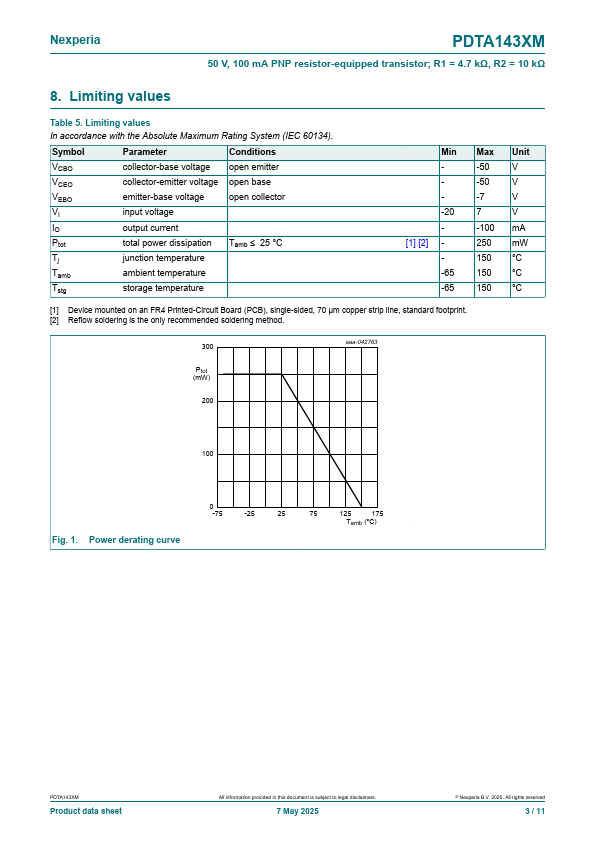

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PDTA143XM
Manufacturer
nexperia ↗
File Size
220.08 KB
Datasheet
PDTA143XM-nexperia.pdf
Description
50V 100mA PNP resistor-equipped transistor
