PDTC124XM, PDTC124XEF NPN resistor-equipped transistors

PDTC124XM Description

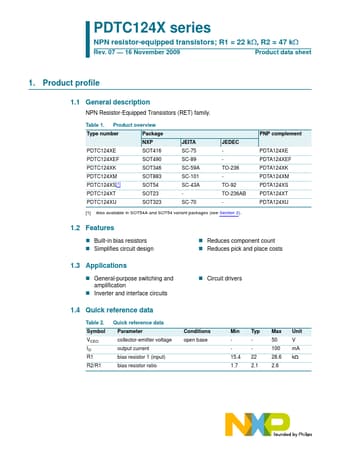

PDTC124X series NPN resistor-equipped transistors; R1 = 22 kΩ, R2 = 47 kΩ Rev.07 * 16 November 2009 Product data sheet 1.Product profile.
NPN Resistor-Equipped Transistors (RET) family.

PDTC124XM Features

* Built-in bias resistors
* Simplifies circuit design
* Reduces component count

PDTC124XM Applications

* General-purpose switching and amplification
* Inverter and interface circuits
* Circuit drivers 1.4 Quick reference data Table 2. Symbol VCEO IO R1 R2/R1 Quick reference data Parameter collector-e
