PDTC124XEF

NPN resistor-equipped transistor

NXP

PDTC124XEF Features

* Power dissipation comparable to SOT23

* Built-in bias resistors R1 and R2 (typ. 22 kΩ and 47 kΩ respectively)

* Simplification of circuit design

* Reduces number of components and board space. APPLICATIONS

* Especially suitable for space reduction in interfa

PDTC124XEF General Description

NPN resistor-equipped transistor encapsulated in an ultra small SC-89 (SOT490) plastic SMD package. PNP complement: PDTA124XEF. MARKING TYPE NUMBER PDTC124XEF PINNING PIN 1 2 3 base/input emitter/ground collector/output DESCRIPTION MARKING CODE 32 2 MGA893 - 1 PDTC124XEF handbook, halfpage 3 R1 1.

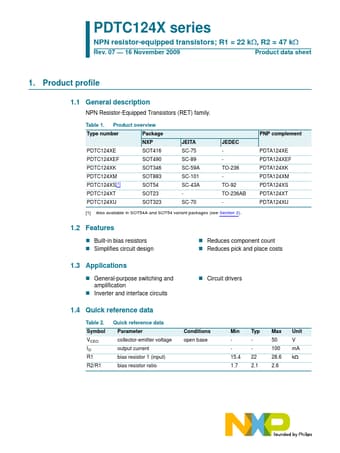

PDTC124XEF Datasheet (116.59 KB)
