PDTC124XU-Q 50V 100mA NPN resistor-equipped transistor

PDTC124XU-Q Description

PDTC124XU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = 47 kΩ 4 July 2025 Product data sheet 1.General .
NPN Resistor-Equipped Transistor (RET) in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

PDTC124XU-Q Features

* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
* Reduces pick and place costs

PDTC124XU-Q Applications

* 3. Applications
* General purpose switching and amplification
* Inverter and interface circuits
* Circuit driver 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IO output current R1 bias resistor 1 (input) R2/R

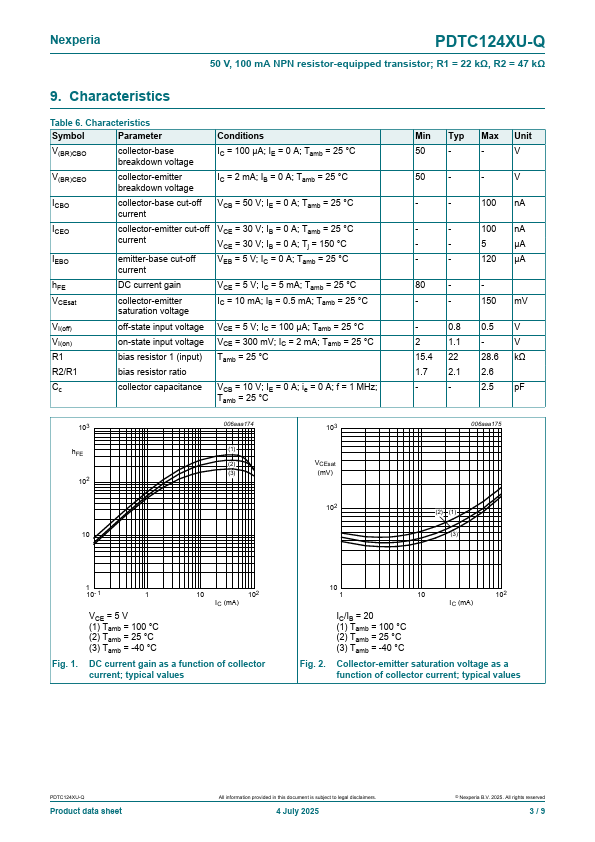

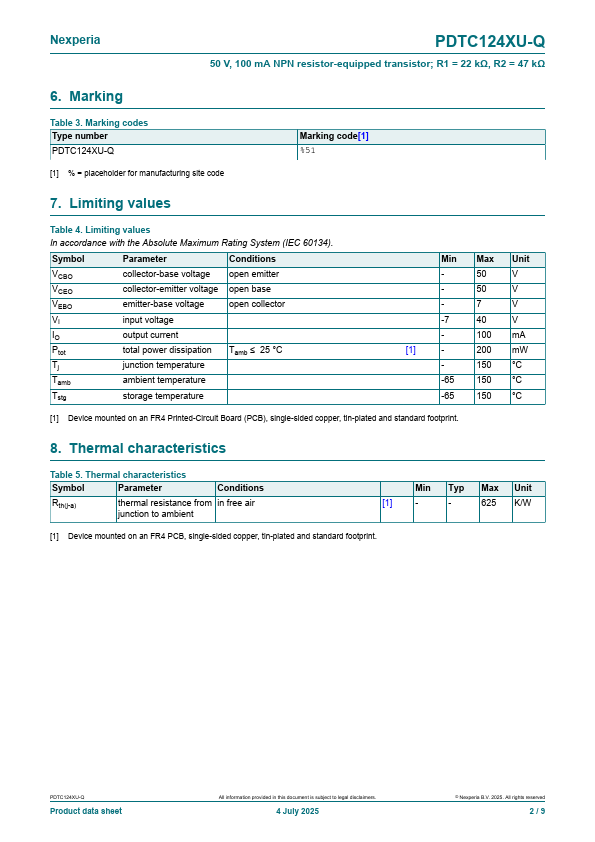

📥 Download Datasheet
