PDTC124XS

NPN resistor-equipped transistors

PDTC124XS Features

* Built-in bias resistors

* Simplifies circuit design

* Reduces component count

* Reduces pick and place costs 1.3 Applications

* General-purpose switching and amplification

* Inverter and interface circuits

* Circuit drivers 1.4 Quick refe

PDTC124XS General Description

NPN Resistor-Equipped Transistors (RET) family. Table 1. Product overview Type number Package NXP PDTC124XE SOT416 PDTC124XEF SOT490 PDTC124XK SOT346 PDTC124XM SOT883 PDTC124XS[1] SOT54 PDTC124XT SOT23 PDTC124XU SOT323 JEITA SC-75 SC-89 SC-59A SC-101 SC-43A SC-70 JEDEC TO-236 TO-.

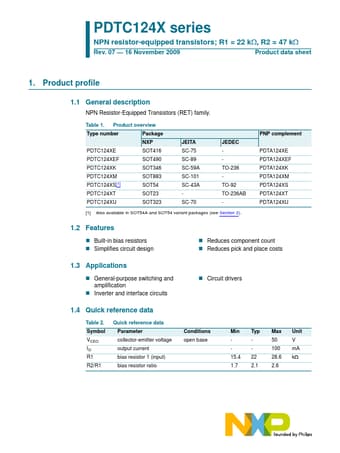

PDTC124XS Datasheet (116.59 KB)

Preview of PDTC124XS PDF

Datasheet Details

Part number:

PDTC124XS

Manufacturer:

nexperia ↗

File Size:

116.59 KB

Description:

Npn resistor-equipped transistors.
PDTC124X series NPN resistor-equipped transistors; R1 = 22 kΩ, R2 = 47 kΩ Rev. 07

* 16 November 2009 Product data sheet 1. Product profile.
