- Description
- Unidirectional ESD protection diode
PESD12VS1ULD Description

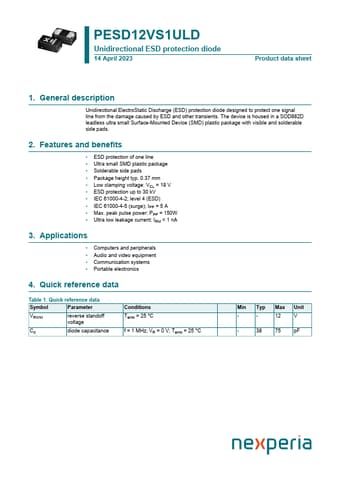

PESD12VS1ULD Unidirectional ESD protection diode 14 April 2023 Product data sheet 1.General .
Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.
PESD12VS1ULD Features
* ESD protection of one line
* Ultra small SMD plastic package
* Solderable side pads
* Package height typ. 0.37 mm
* Low clamping voltage: VCL = 19 V
* ESD protection up to 30 kV
* IEC 61000-4-2; level 4 (ESD)
* IEC 61000-4-5 (surge);
PESD12VS1ULD Applications
* Computers and peripherals
* Audio and video equipment
* Communication systems
* Portable electronics
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VRWM
reverse standoff voltage
Cd
diode capacitance
Conditions Tamb = 25 °C
f = 1 MHz;
