PESD2ETH-D Ultra low capacitance double rail-to-rail ESD protection diode

📥 Download Datasheet Datasheet Preview Page 1

Description

PESD2ETH-D Ultra low capacitance double rail-to-rail ESD protection diode 14 December 2017 Product data sheet 1.General .
Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT457 Surface-Mounted Device (SMD) plastic packag.

📥 Download Datasheet

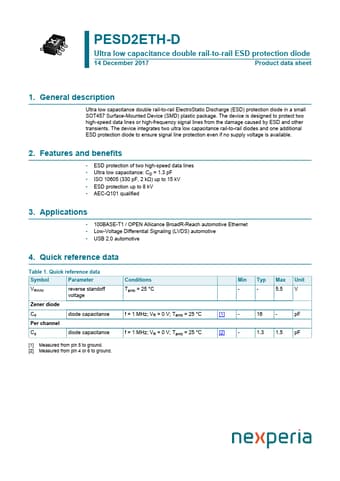

Preview of PESD2ETH-D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PESD2ETH-D
Manufacturer
nexperia ↗
File Size
229.21 KB
Datasheet
PESD2ETH-D-nexperia.pdf
Description
Ultra low capacitance double rail-to-rail ESD protection diode

Features

* ESD protection of two high-speed data lines
* Ultra low capacitance: CD = 1.3 pF
* ISO 10605 (330 pF, 2 kΩ) up to 15 kV
* ESD protection up to 8 kV

Applications

* 100BASE-T1 / OPEN Allicance BroadR-Reach automotive Ethernet
* Low-Voltage Differential Signaling (LVDS) automotive
* USB 2.0 automotive 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage Zener diode Cd Per channel
