PESD2ETH-X Datasheet, Diode, nexperia

PESD2ETH-X Features

  • Diode
  • ESD protection of two high-speed data lines
  • Ultra low capacitance: Cd = 1 pF
  • IEC 61000-4-2 up to 8 kV
  • Very low reverse current
  • AEC-Q101

PDF File Details

Part number:

PESD2ETH-X

Manufacturer:

nexperia ↗

File Size:

674.72kb

Download:

📄 Datasheet

Description:

Ultra low capacitance double rail-to-rail esd protection diode. Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface-Mounted Device (S

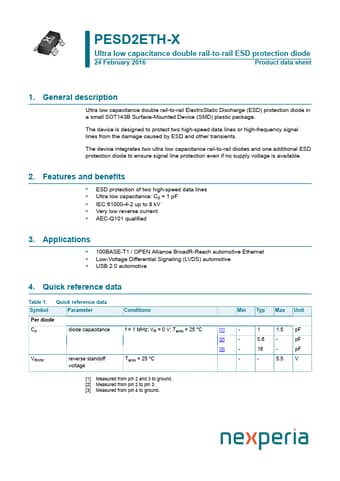

Datasheet Preview: PESD2ETH-X 📥 Download PDF (674.72kb)
Page 2 of PESD2ETH-X Page 3 of PESD2ETH-X

PESD2ETH-X Application

  • Applications
  • 100BASE-T1 / OPEN Alliance BroadR-Reach automotive Ethernet
  • Low-Voltage Differential Signaling (LVDS) automotive
