PESD2ETH100T-Q - ESD protection

nexperia

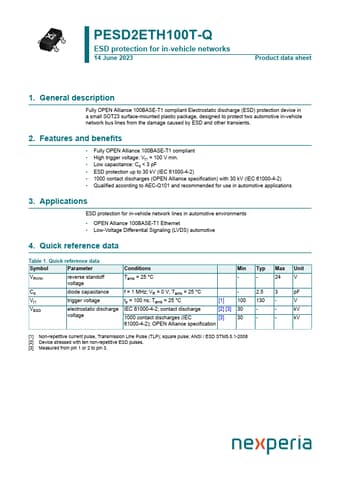

PESD2ETH100T-Q Datasheet Preview — Preview of PESD2ETH100T-Q PDF

Datasheet Details

Part number	PESD2ETH100T-Q
Manufacturer	nexperia ↗
File Size	316.54 KB
Description	ESD protection
Datasheet	PESD2ETH100T-Q-nexperia.pdf

PESD2ETH100T-Q Product details

Description

Fully OPEN Alliance 100BASE-T1 compliant Electrostatic discharge (ESD) protection device in a small SOT23 surface-mounted plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ESD and other transients.

Features

Fully OPEN Alliance 100BASE-T1 compliant.
High trigger voltage: Vt1 = 100 V min.
Low capacitance: Cd < 3 pF.
ESD protection up to 30 kV (IEC 61000-4-2).
1000 contact discharges (OPEN Alliance specification) with 30 kV (IEC 61000-4-2).
Qualified according to AEC-Q101 and recommended for use in automotive.
