PESD2ETH1GXT-Q - ESD protection

nexperia

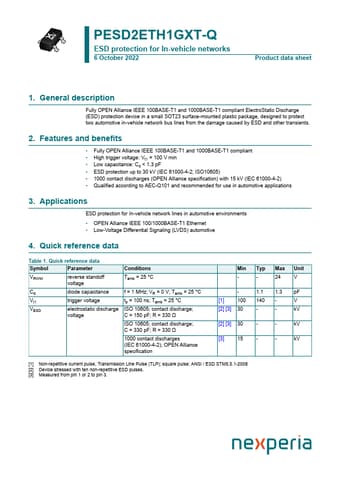

PESD2ETH1GXT-Q Datasheet Preview — Preview of PESD2ETH1GXT-Q PDF

Datasheet Details

Part number	PESD2ETH1GXT-Q
Manufacturer	nexperia ↗
File Size	222.89 KB
Description	ESD protection
Datasheet	PESD2ETH1GXT-Q-nexperia.pdf

PESD2ETH1GXT-Q Product details

Description

Fully OPEN Alliance IEEE 100BASE-T1 and 1000BASE-T1 compliant ElectroStatic Discharge (ESD) protection device in a small SOT23 surface-mounted plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ESD and other transients.

Features

Fully OPEN Alliance IEEE 100BASE-T1 and 1000BASE-T1 compliant.
High trigger voltage: Vt1 = 100 V min.
Low capacitance: Cd < 1.3 pF.
ESD protection up to 30 kV (IEC 61000-4-2; ISO10605).
1000 contact discharges (OPEN Alliance specification) with 15 kV (IEC 61000-4-2).
Qualified according to AEC-Q101 and recommended for use in automotive.
