PESD2ETH1G-T ESD protection

📥 Download Datasheet Datasheet Preview Page 1

Description

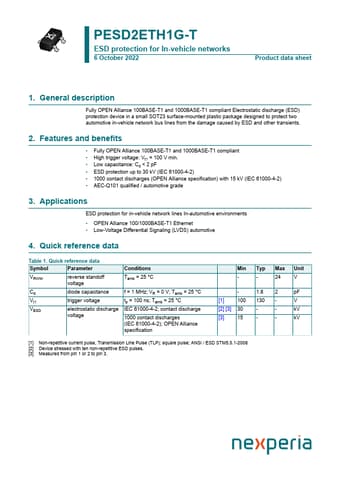

PESD2ETH1G-T ESD protection for In-vehicle networks 6 October 2022 Product data sheet 1.General .
Fully OPEN Alliance 100BASE-T1 and 1000BASE-T1 compliant Electrostatic discharge (ESD) protection device in a small SOT23 surface-mounted plastic pack.

📥 Download Datasheet

Preview of PESD2ETH1G-T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Fully OPEN Alliance 100BASE-T1 and 1000BASE-T1 compliant
* High trigger voltage: Vt1 = 100 V min.
* Low capacitance: Cd < 2 pF
* ESD protection up to 30 kV (IEC 61000-4-2)
* 1000 contact discharges (OPEN Alliance specification) with 15 kV (IEC 61000-4-2)

Applications

* ESD protection for in-vehicle network lines In-automotive environments
* OPEN Alliance 100/1000BASE-T1 Ethernet
* Low-Voltage Differential Signaling (LVDS) automotive 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage Cd Vt1 VE
