PESD2ETH1GT-Q Datasheet, Protection, nexperia

PESD2ETH1GT-Q Features

  • Protection
  • Fully OPEN Alliance 100BASE-T1 and 1000BASE-T1 compliant
  • High trigger voltage: Vt1 = 100 V min.
  • Low capacitance: Cd < 2 pF
  • ESD protection up to 3

PDF File Details

Part number:

PESD2ETH1GT-Q

Manufacturer:

nexperia ↗

File Size:

413.28kb

Download:

📄 Datasheet

Description:

Esd protection. Fully OPEN Alliance 100BASE-T1 and 1000BASE-T1 compliant Electrostatic Discharge (ESD) protection device in a small SOT23 surface-mou

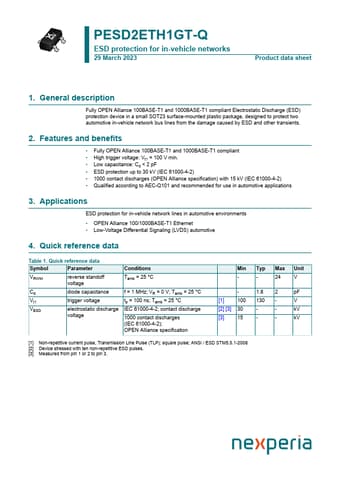

Datasheet Preview: PESD2ETH1GT-Q 📥 Download PDF (413.28kb)
Page 2 of PESD2ETH1GT-Q Page 3 of PESD2ETH1GT-Q

PESD2ETH1GT-Q Application

  • Applications 3. Applications ESD protection for in-vehicle network lines in automotive environments
  • OPEN Alliance 100/1000BASE-T1 Etherne
