PMEG2005AEL - MEGA Schottky barrier rectifier

PMEG2005AEL Description

PMEG2005AEL 0.5 A ultra low VF MEGA Schottky barrier rectifier in leadless ultra small SOD882 package Rev.03 * 15 January 2010 Product dat.
Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection encapsulated in a SOD8.

PMEG2005AEL Features

* Forward current: 0.5 A
* Reverse voltage: 20 V
* Ultra low forward voltage
* Leadless ultra small plastic package

PMEG2005AEL Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Low voltage rectification
* High efficiency DC-to-DC conversion
* Low power consumption applications 1.4 Quick reference data Table 1. Symbol IF VR Quick reference data Paramete

📥 Download Datasheet

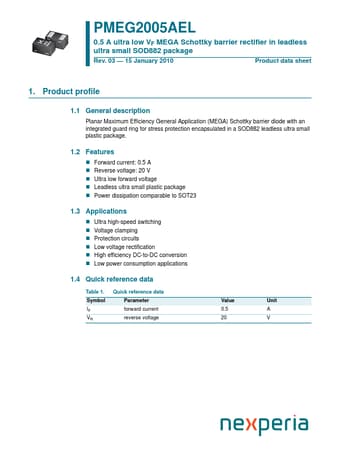

Preview of PMEG2005AEL PDF
