PMEG2005CT Datasheet, Rectifier, NXP

PMEG2005CT Features

  • Rectifier
  • Average forward current: IF(AV) ≤ 0.5 A
  • Reverse voltage: VR ≤ 20 V
  • Low forward voltage
  • AEC-Q101 qualified
  • Small SMD plastic package

PDF File Details

Part number:

PMEG2005CT

Manufacturer:

NXP ↗

File Size:

144.32kb

Download:

📄 Datasheet

Description:

Dual mega schottky barrier rectifier. Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier in common cathode configuration with an integrated gu

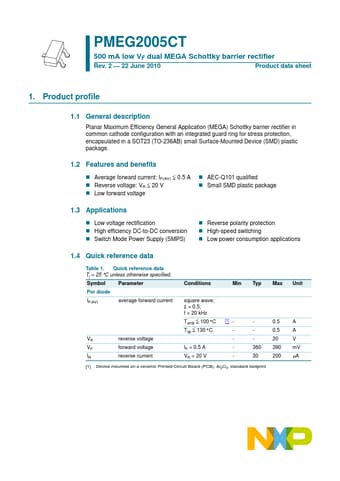

Datasheet Preview: PMEG2005CT 📥 Download PDF (144.32kb)
Page 2 of PMEG2005CT Page 3 of PMEG2005CT

PMEG2005CT Application

  • Applications
  • Low voltage rectification
  • High efficiency DC-to-DC conversion
  • Switch Mode Power Supply (SMPS)

TAGS

PMEG2005CT
dual
MEGA
Schottky
barrier
rectifier
NXP
