PMEG2010AEH - MEGA Schottky barrier rectifiers

PMEG2010AEH Description

PMEG2010AEH; PMEG2010AET 1 A very low VF MEGA Schottky barrier rectifiers Rev.03 * 28 March 2007 Product data sheet 1.Product profile 1.1.
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in sm.

PMEG2010AEH Applications

* I Low voltage rectification I High efficiency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick reference data Table 2. Symbol IF VR VF Quick reference data Parameter forward current reverse voltage forward voltage [1] Pulse

📥 Download Datasheet

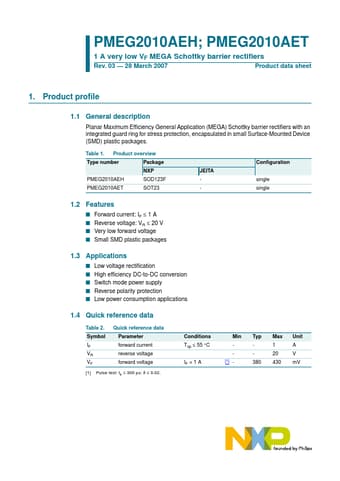

Preview of PMEG2010AEH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PMEG2010AEH
Manufacturer
NXP ↗
File Size
59.10 KB
Datasheet
PMEG2010AEH-NXP.pdf
Description
MEGA Schottky barrier rectifiers
