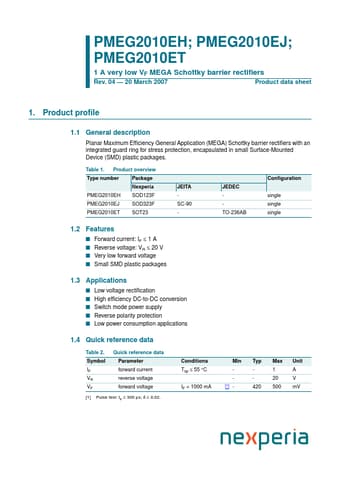

PMEG2010EH Datasheet (nexperia) - MEGA Schottky barrier rectifiers

PMEG2010EH, MEGA Schottky barrier rectifiers

Planar Maximum Efﬁciency General Application (MEGA) Schottky barrier rectiﬁers with an integrated guard ring for stress protection, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

Table 1.

Product overview Type number Package Nexperia PMEG2010EH SOD123F PMEG2010EJ SOD323F PMEG2

PMEG2010EH Features

* I Forward current: IF ≤ 1 A I Reverse voltage: VR ≤ 20 V I Very low forward voltage I Small SMD plastic packages 1.3 Applications I Low voltage rectiﬁcation I High efﬁciency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick
