PMEG2010ET Datasheet - nexperia

PMEG2010ET MEGA Schottky barrier rectifiers

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number Package Nexperia PMEG2010EH SOD123F PMEG2010EJ SOD323F PMEG2.

PMEG2010ET Features

* I Forward current: IF ≤ 1 A I Reverse voltage: VR ≤ 20 V I Very low forward voltage I Small SMD plastic packages 1.3 Applications I Low voltage rectification I High efficiency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick

PMEG2010ET Datasheet (619.64 KB)

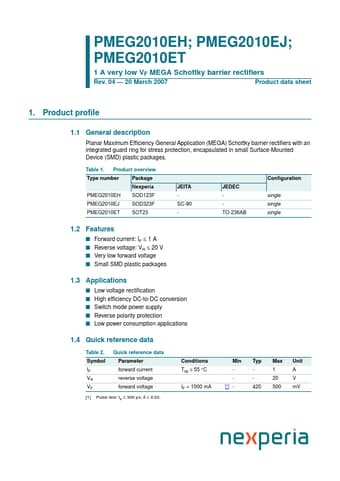

Preview of PMEG2010ET PDF
PMEG2010ET Datasheet Preview Page 2 PMEG2010ET Datasheet Preview Page 3

Datasheet Details

Part number:

PMEG2010ET

Manufacturer:

nexperia ↗

File Size:

619.64 KB

Description:

Mega schottky barrier rectifiers.
