PMEG2010EPA - MEGA Schottky barrier rectifier

PMEG2010EPA Description

PMEG2010EPA 1 A low VF MEGA Schottky barrier rectifier Rev.01 * 15 December 2009 Product data sheet 1.Product profile 1.1 General descrip.
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection.

PMEG2010EPA Features

* Average forward current: IF(AV) ≤ 1 A
* Reverse voltage: VR ≤ 20 V
* Low forward voltage
* Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity
* Leadless small SMD plastic package with medium power capability
* AEC-Q101

PMEG2010EPA Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications
* Battery chargers for mobile equipment 1.4 Quick reference data Table 1. Quick ref

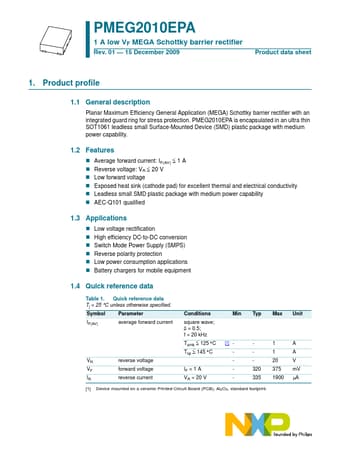

📥 Download Datasheet
