PMEG2010ER - MEGA Schottky barrier rectifier

PMEG2010ER Description

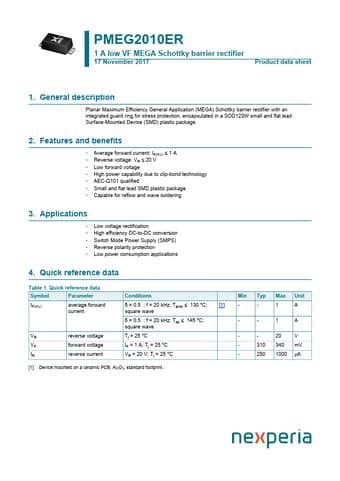

PMEG2010ER 1 A low VF MEGA Schottky barrier rectifier 17 November 2017 Product data sheet 1.General .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a.

PMEG2010ER Features

* Average forward current: IF(AV) ≤ 1 A
* Reverse voltage: VR ≤ 20 V
* Low forward voltage
* High power capability due to clip-bond technology
* AEC-Q101 qualified
* Small and flat lead SMD plastic package
* Capable for reflow and wave solderin

PMEG2010ER Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average f
