PMEG2010AET, PMEG2010AEH Datasheet - NXP

PMEG2010AET MEGA Schottky barrier rectifiers

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number Package NXP PMEG2010AEH SOD123F PMEG2010AET SOT23 JE.

PMEG2010AET Features

* I Forward current: IF ≤ 1 A I Reverse voltage: VR ≤ 20 V I Very low forward voltage I Small SMD plastic packages 1.3 Applications I Low voltage rectification I High efficiency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick

PMEG2010AEH-NXP.pdf

This datasheet PDF includes multiple part numbers: PMEG2010AET, PMEG2010AEH. Please refer to the document for exact specifications by model.

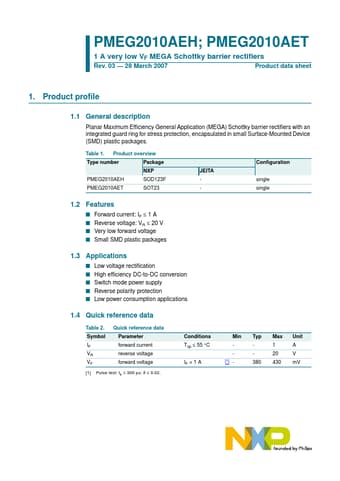

PMEG2010AET Datasheet Preview Page 2 PMEG2010AET Datasheet Preview Page 3

Datasheet Details

Part number:

PMEG2010AET, PMEG2010AEH

Manufacturer:

NXP ↗

File Size:

59.10 KB

Description:

Mega schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: PMEG2010AET, PMEG2010AEH.
Please refer to the document for exact specifications by model.
