PMEG2010BEA, PMEG3010BEA - 1A very low VF MEGA Schottky barrier rectifier

PMEG2010BEA Description

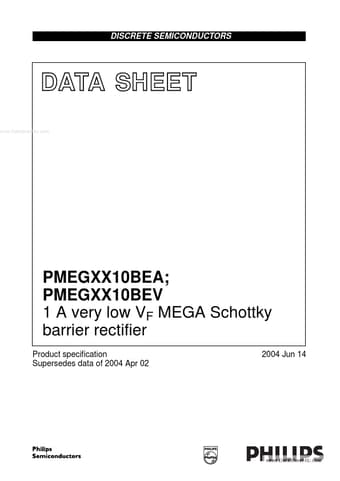

DISCRETE SEMICONDUCTORS DATA SHEET www.DataSheet4U.com PMEGXX10BEA; PMEGXX10BEV 1 A very low VF MEGA Schottky barrier rectifier Product speciļ¬cation.
PARAMETER forward current reverse voltage 1 20; 30; 40 MAX. High efficiency DC-to-DC conversion. Voltage cla.

PMEG2010BEA Features

* Forward current: 1 A
* Reverse voltages: 20 V, 30 V, 40 V
* Very low forward voltage
* Ultra small and very small plastic SMD package
* Power dissipation comparable to SOT23. www. DataSheet4U. com PMEGXX10BEA; PMEGXX10BEV QUICK REFERENCE DATA SYMBOL IF VR PIN

PMEG2010BEA Applications

* High efficiency DC-to-DC conversion
* Voltage clamping
* Protection circuits
* Low voltage rectification
* Blocking diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PMEG2010BEA, PMEG3010BEA. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PMEG2010BEA, PMEG3010BEA
Manufacturer
NXP ↗ Semiconductors
File Size
121.60 KB
Datasheet
PMEG3010BEA_NXPSemiconductors.pdf
Description
1A very low VF MEGA Schottky barrier rectifier
Note
This datasheet PDF includes multiple part numbers: PMEG2010BEA, PMEG3010BEA.
Please refer to the document for exact specifications by model.
