PMEG2010AEB-Q - 1A low VF MEGA Schottky barrier rectifier

PMEG2010AEB-Q Description

PMEG2010AEB-Q 20 V, 1 A low VF MEGA Schottky barrier rectifier 25 October 2021 Product data sheet 1.General .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a.

PMEG2010AEB-Q Features

* Forward current: 1.0 A
* Reverse voltage: 20 V
* Ultra low forward voltage
* Ultra small SMD package

PMEG2010AEB-Q Applications

* 3. Applications
* Low voltage rectification
* High efficiency DC/DC conversion
* Voltage clamping
* Inverse-polarity protection
* Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltag

📥 Download Datasheet

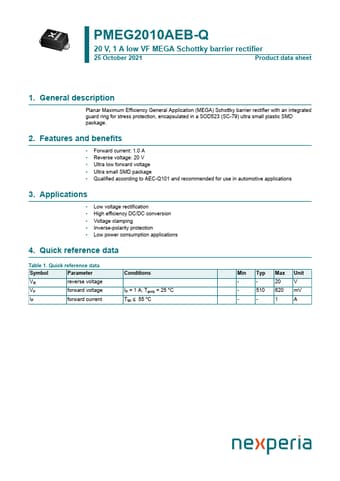

Preview of PMEG2010AEB-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3
