PMEG2010EJ, PMEG2010EH - MEGA Schottky barrier rectifiers

PMEG2010EJ Description

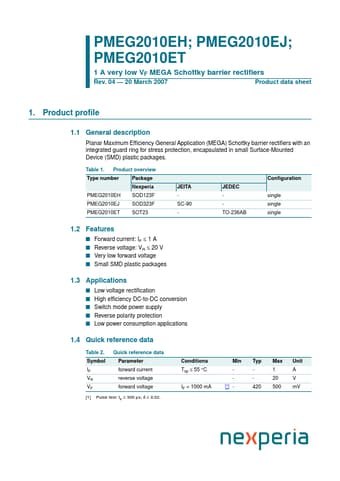

PMEG2010EH; PMEG2010EJ; PMEG2010ET 1 A very low VF MEGA Schottky barrier rectifiers Rev.04 * 20 March 2007 Product data sheet 1.Product .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in sm.

PMEG2010EJ Applications

* I Low voltage rectification I High efficiency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick reference data Table 2. Symbol IF VR VF Quick reference data Parameter forward current reverse voltage forward voltage [1] Pulse
