PMEG2005AELD - MEGA Schottky barrier rectifier

PMEG2005AELD Description

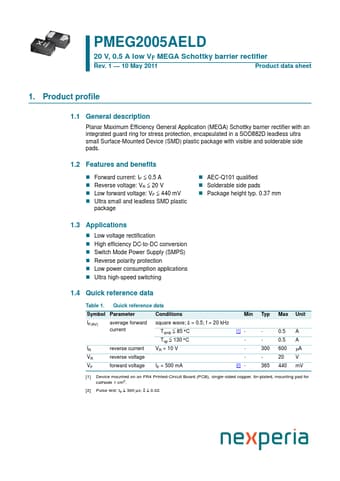

PMEG2005AELD 20 V, 0.5 A low VF MEGA Schottky barrier rectifier Rev.1 * 10 May 2011 Product data sheet 1.Product profile 1.1 General de.
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a.

PMEG2005AELD Features

* Forward current: IF ≤ 0.5 A
* Reverse voltage: VR ≤ 20 V
* Low forward voltage: VF ≤ 440 mV
* Ultra small and leadless SMD plastic package
* AEC-Q101 qualified
* Solderable side pads

PMEG2005AELD Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications
* Ultra high-speed switching 1.4 Quick reference data Table 1. Quick reference data
