PMEG2005AESF - MEGA Schottky barrier rectifier

PMEG2005AESF Description

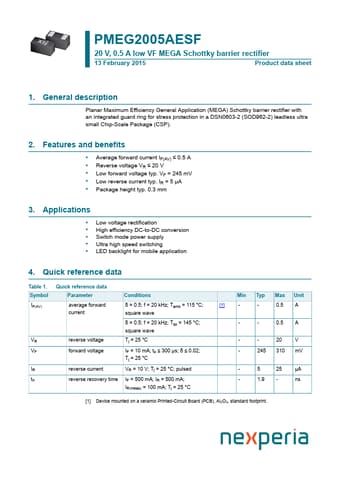

PMEG2005AESF 20 V, 0.5 A low VF MEGA Schottky barrier rectifier 13 February 2015 Product data sheet 1.General .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection in a DSN0603-2 (SO.

PMEG2005AESF Features

* Average forward current IF(AV) ≤ 0.5 A
* Reverse voltage VR ≤ 20 V
* Low forward voltage typ. VF = 245 mV
* Low reverse current typ. IR = 5 µA

PMEG2005AESF Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch mode power supply
* Ultra high speed switching
* LED backlight for mobile application 4. Quick reference data Table 1. Symbol IF(AV) VR VF IR trr Quick reference data Parameter Cond
