PMEG2005ET Datasheet - nexperia

PMEG2005ET MEGA Schottky barrier rectifiers

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOT23 small Surface Mounted Device (SMD) plastic package. Table 1. Product overview Type number Package Nexperia PMEG2005ET SOT23 PMEG3005ET .

PMEG2005ET Features

* Forward current: 0.5 A

* Very low forward voltage

* Small SMD plastic package 1.3 Applications

* Low voltage rectification

* High efficiency DC-to-DC conversion

* Switch mode power supply

* Inverse polarity protection

* Low power con

PMEG2005ET-nexperia.pdf

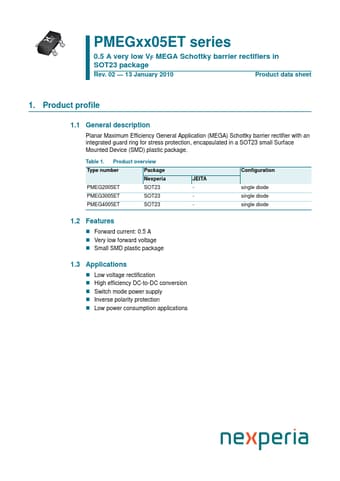

Preview of PMEG2005ET PDF
PMEG2005ET Datasheet Preview Page 2 PMEG2005ET Datasheet Preview Page 3

Datasheet Details

Part number:

PMEG2005ET

Manufacturer:

nexperia ↗

File Size:

670.28 KB

Description:

Mega schottky barrier rectifiers.
