PSMN1R1-50SLH 50V N-channel MOSFET

nexperia

Description

PSMN1R1-50SLH N-channel 50 V, 1.18 mOhm, 280 A logic level MOSFET in LFPAK88 using NextPower-S3 Schottky-Plus technology 8 January 2021 Objective .
280 Amp, logic level gate drive N-channel enhancement mode MOSFET in 175 °C LFPAK88 package using advanced TrenchMOS Superjunction technology.

📥 Download Datasheet

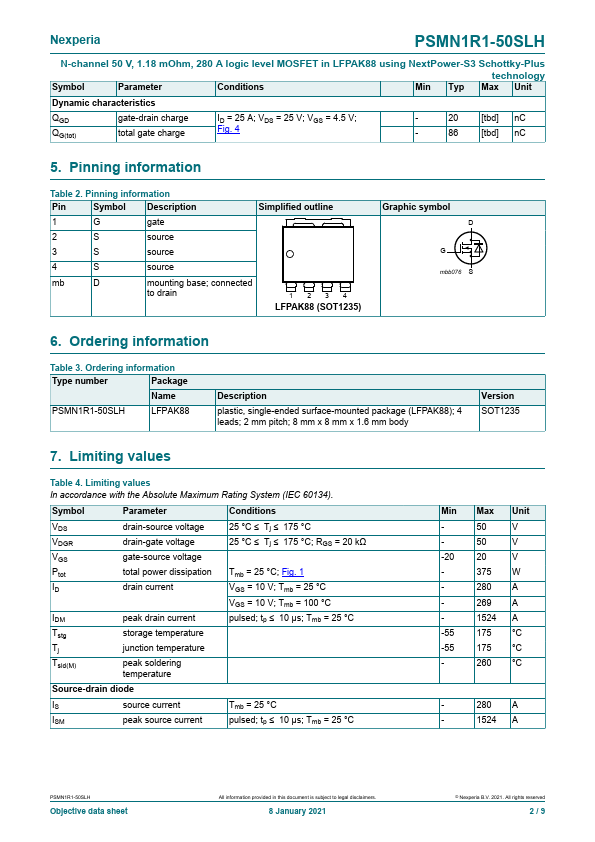

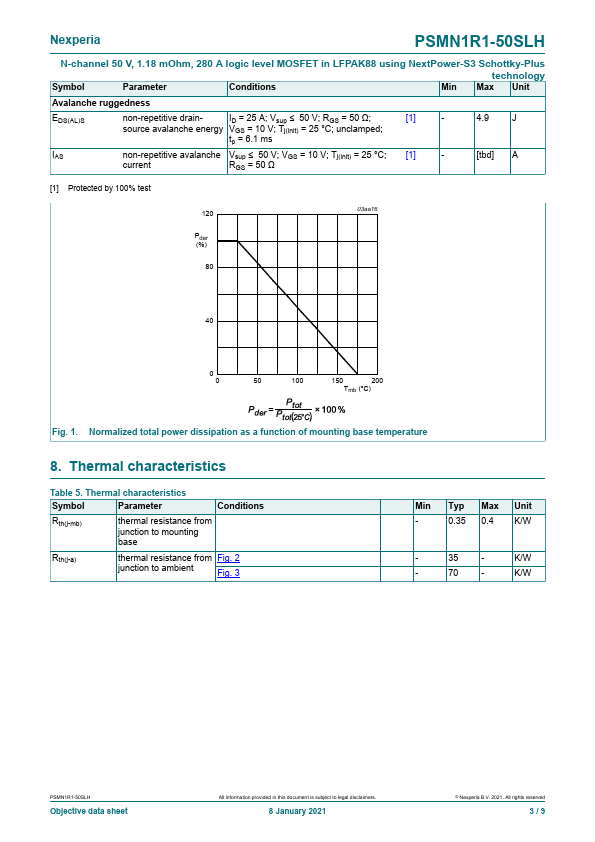

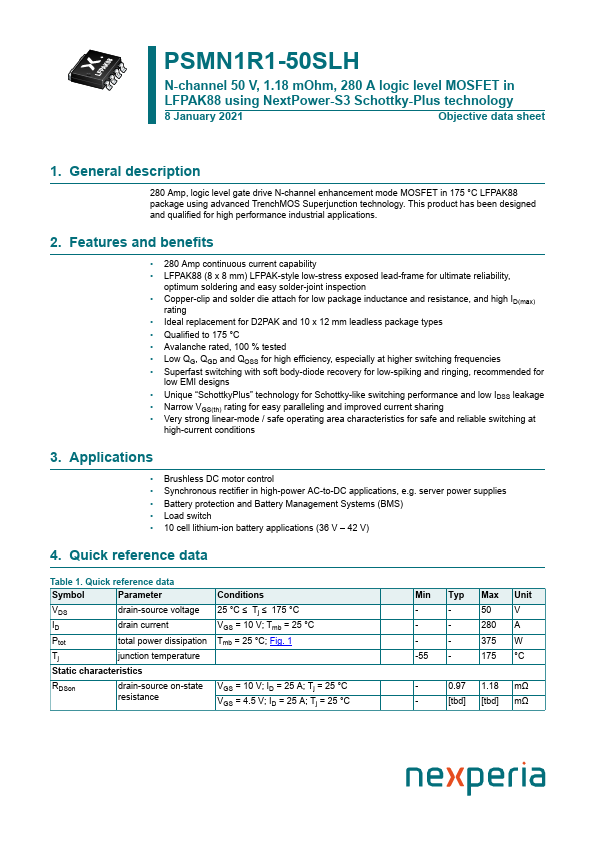

PSMN1R1-50SLH Datasheet Preview — Preview of PSMN1R1-50SLH PDF

Datasheet Specifications

Part number: PSMN1R1-50SLH
Manufacturer: nexperia ↗
File Size: 247.96 KB
Datasheet: PSMN1R1-50SLH-nexperia.pdf
Description: 50V N-channel MOSFET

Features

* 280 Amp continuous current capability
* LFPAK88 (8 x 8 mm) LFPAK-style low-stress exposed lead-frame for ultimate reliability, optimum soldering and easy solder-joint inspection
* Copper-clip and solder die attach for low package inductance and resistance, and high ID(max)
