US3M Description

SMC US3M 1000 V, 3 A ultrafast recovery rectifier in SMC 20 January 2025 Product data sheet 1.General .
Ultrafast recovery rectifier, encapsulated in an SMC package. Reverse voltage: VR ≤ 1000 V. Forward curre.

US3M Features

* Reverse voltage: VR ≤ 1000 V
* Forward current: IF ≤ 3 A
* Ultrafast recovery time trr ≤ 75 ns
* Pt doped life time control
* Ideal for automated placement
* Glass passivated chip junction

US3M Applications

* Rectification
* Reverse polarity protection
* Fast switching
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 131 °C VRRM re

📥 Download Datasheet

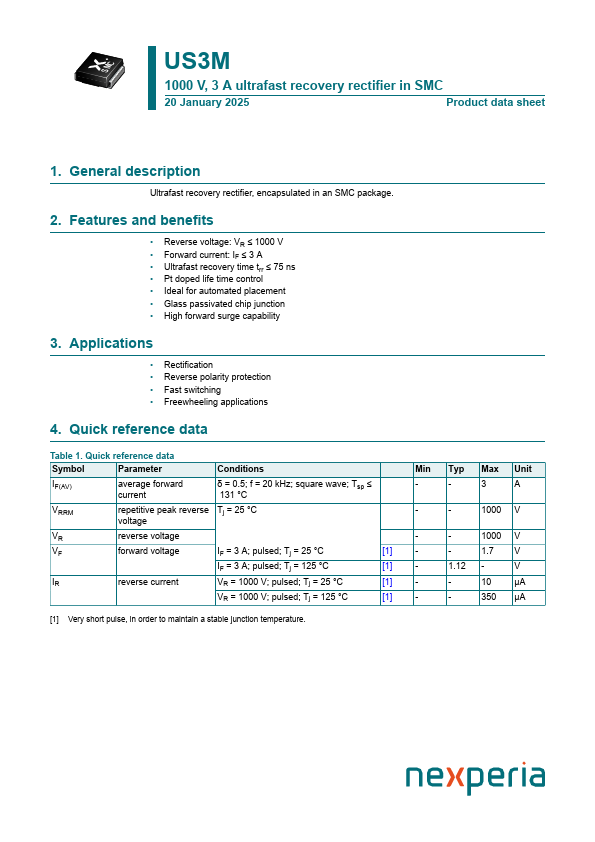

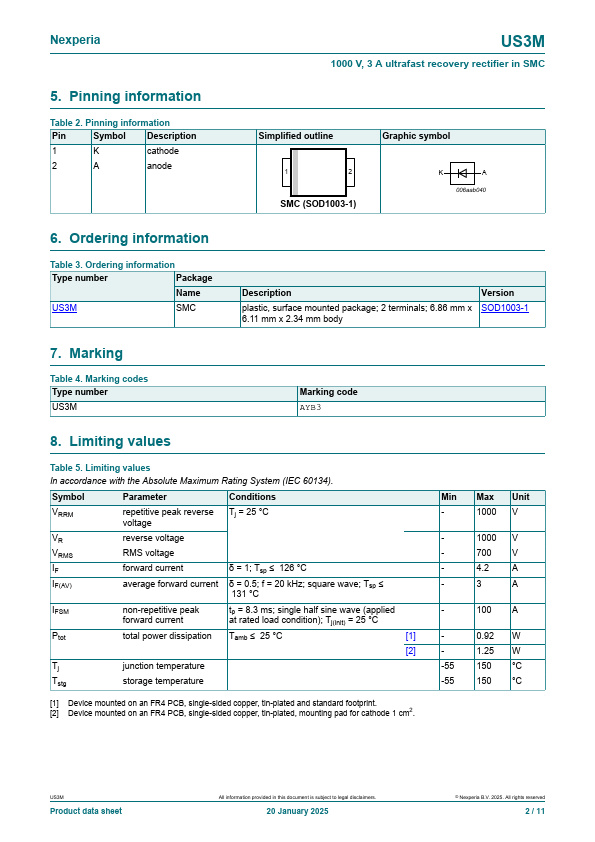

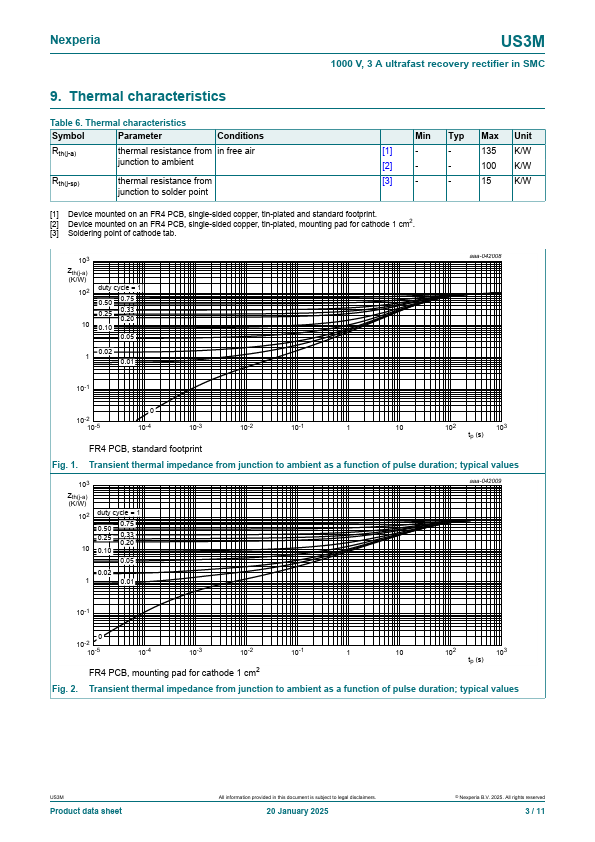

US3M Datasheet Preview — Preview of US3M PDF

Datasheet Details

Part number: US3M
Manufacturer: nexperia ↗
File Size: 258.94 KB
Datasheet: US3M-nexperia.pdf
Description: 1000V 3A ultrafast recovery rectifier
