PE1520 Datasheet, Mosfet, semi one

PE1520 Features

  • Mosfet
  • VDS = 150V,ID =20A RDS(ON) <85mΩ @ VGS=10V (Typ:70mΩ)
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage and current

PDF File Details

Part number:

PE1520

Manufacturer:

semi one

File Size:

691.07kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The PE1520 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide var

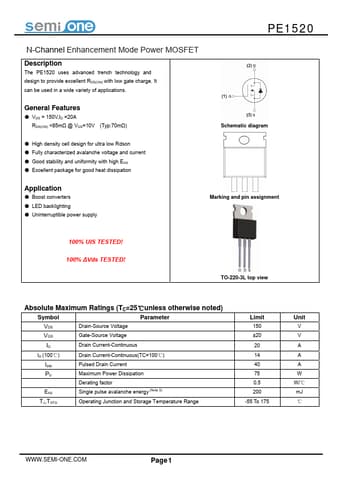

Datasheet Preview: PE1520 📥 Download PDF (691.07kb)
Page 2 of PE1520 Page 3 of PE1520

PE1520 Application

  • Applications General Features
  • VDS = 150V,ID =20A RDS(ON) <85mΩ @ VGS=10V (Typ:70mΩ)
  • High density cell design for ultra low R
