uP1965

5V MOSFET Driver

uP1965 Features

* The uP1965 is 5V MOSFET driver optimized for driving two N-channel MOSFETs in a synchronous rectified buck converter for mobile computing application. This part has integrated bootstrap diode to eliminate external component count. The resistor commonly placed between MOSFET gate and source for disc

uP1965 Datasheet (170.13 KB)

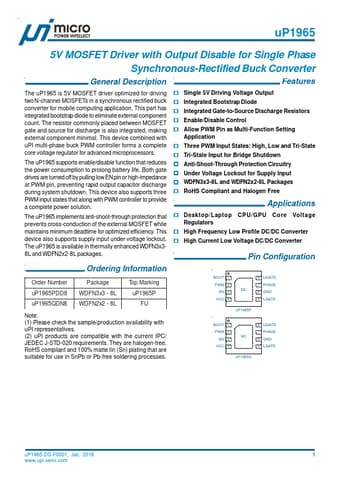

Preview of uP1965 PDF

Datasheet Details

Part number:

uP1965

Manufacturer:

uPI Semiconductor

File Size:

170.13 KB

Description:

5v mosfet driver.
