uP1965S

5V MOSFET Driver

uP1965S Features

* † Single 5V Driving Voltage Output † Integrated Bootstrap Diode † Integrated Gate-to-Source Discharge Resistors † Enable/Disable Control † Allow PWM Pin as Multi-Function Setting Application † Three PWM Input States: High, Low and Tri-State † Tri-State Input for Bridge Shutdown † Anti-Shoot-Through

uP1965S General Description

The uP1965S is 5V MOSFET driver optimized for driving two N-channel MOSFETs in a synchronous rectified buck converter for mobile computing application. This part has integrated bootstrap diode to eliminate external component count. The resistor commonly placed between MOSFET gate and source for disc.

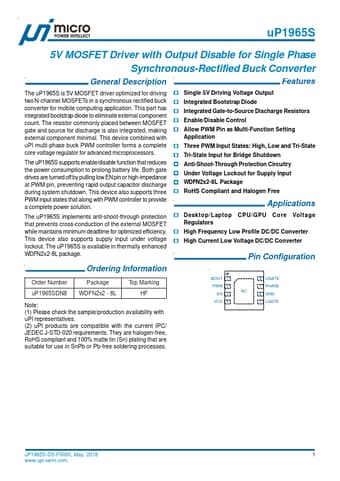

uP1965S Datasheet (161.58 KB)

Preview of uP1965S PDF

Datasheet Details

Part number:

uP1965S

Manufacturer:

uPI Semiconductor

File Size:

161.58 KB

Description:

5v mosfet driver.
