uP1991S, 12V MOSFET Drivers

uP1991S 12V MOSFET Drivers with Output Disable for Single Phase Synchronous-Rectified Buck Converter General .
Features The uP1991S is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs in a synchronous-rectified buck converter.

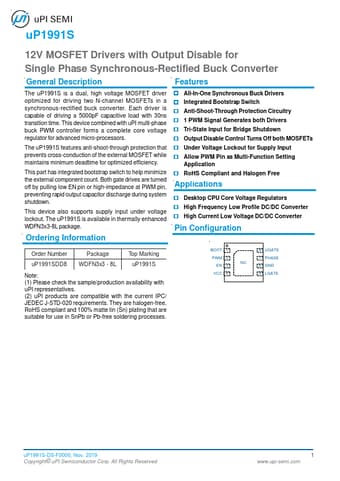

datasheet Preview Page 1 from Datasheet4u.com

uP1991S-uPISemiconductor.pdf

uP1991S Datasheet Preview — Preview of uP1991S PDF

Datasheet Details

Part number:

uP1991S

Manufacturer:

uPI Semiconductor

File Size:

113.19 KB

Description:

12V MOSFET Drivers

Features

* The uP1991S is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs in a synchronous-rectified buck converter. Each driver is capable of driving a 5000pF capacitive load with 30ns transition time. This device combined with uPI multi-phase buck PWM controller forms a comple

Applications

* Desktop CPU Core Voltage Regulators High Frequency Low Profile DC/DC Converter High Current Low Voltage DC/DC Converter Pin Configuration Order Number uP1991SDD8 Package WDFN3x3 - 8L Top Marking uP1991S Note: (1) Please check the sample/production availability with uPI representatives. (2)
