uP1991 12V MOSFET Drivers

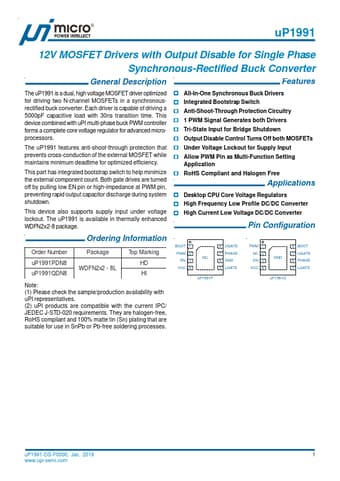

📥 Download Datasheet Datasheet Preview Page 1

Description

uP1991 12V MOSFET Drivers with Output Disable for Single Phase Synchronous-Rectified Buck Converter General .
Features The uP1991 is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs in a synchronousrectified buck converter.

📥 Download Datasheet

Preview of uP1991 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
uP1991
Manufacturer
uPI Semiconductor
File Size
164.72 KB
Datasheet
uP1991-uPISemiconductor.pdf
Description
12V MOSFET Drivers

Features

* The uP1991 is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs in a synchronousrectified buck converter. Each driver is capable of driving a 5000pF capacitive load with 30ns transition time. This device combined with uPI multi-phase buck PWM controller forms a complete

Applications

* † Desktop CPU Core Voltage Regulators † High Frequency Low Profile DC/DC Converter † High Current Low Voltage DC/DC Converter Pin Configuration Ordering Information Order Number Package Top Marking uP1991PDN8 HD WDFN2x2 - 8L uP1991QDN8 HI Note: (1) Please check the sample/production availa
